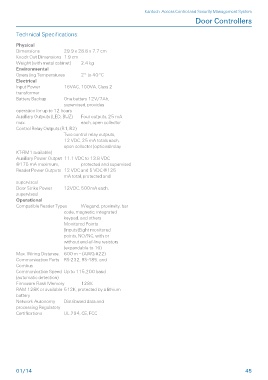

Page 46 - Catalog Kantech 2014
P. 46
Kantech Access Control and Security Management System
Door Controllers
Technical Specifications:
Physical
Dimensions 29.9 x 28.8 x 7.7 cm
Knock Out Dimensions 1.9 cm
Weight (with metal cabinet) 2.4 kg
Environmental
Operating Temperatures 2° to 40°C
Electrical
Input Power 16VAC, 100VA, Class 2
transformer
Battery Backup One battery 12V/7Ah,
supervised, provides
operation for up to 12 hours
Auxiliary Outputs (LED, BUZ) Four outputs, 25 mA
max. each, open collector
Control Relay Outputs (R1, R2)
Two control relay outputs,
12 VDC, 25 mA totals each,
open collector (optional relay
KT-RM1 available)
Auxiliary Power Output 11.1 VDC to 13.8 VDC
@175 mA maximum, protected and supervised
Reader Power Outputs 12 VDC and 5 VDC @125
mA total, protected and
supervised
Door Strike Power 12VDC, 500mA each,
supervised
Operational
Compatible Reader Types Wiegand, proximity, bar
code, magnetic, integrated
keypad, and others
Monitored Points
(Inputs)Eight monitored
points, NO/NC, with or
without end-of-line resistors
(expandable to 16)
Max. Wiring Distance. 600 m – (AWG #22)
Communication Ports RS-232, RS-485, and
Combus
Communication Speed Up to 115,200 baud
(automatic detection)
Firmware Flash Memory 128K
RAM 128K or available 512K, protected by a lithium
battery
Network Autonomy Distributed data and
processing Regulatory
Certifications UL 294, CE, FCC
01/14 45
