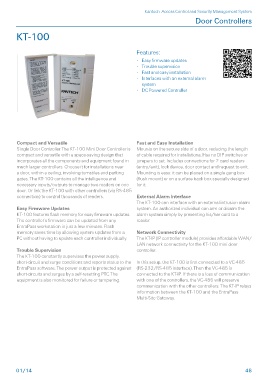

Page 49 - Catalog Kantech 2014
P. 49
100 Kantech Access Control and Security Management System
Door Controllers
Features:
• Easy firmware updates
• Trouble supervision
• Fast and easy installation
• Interfaces with an external alarm
system
• DC Powered Controller
Compact and Versatile Fast and Easy Installation
Single Door Controller The KT-100 Mini Door Controller is Mounts on the secure side of a door, reducing the length
compact and versatile with a space-saving design that of cable required for installations. Has no DIP switches or
incorporates all the components and equipment found in jumpers to set. Includes connections for 2 card readers
much larger controllers. Choose it for installations near (entry/exit), lock device, door contact and request to exit.
a door, within a ceiling, involving turnstiles and parking Mounting is easy: it can be placed on a single gang box
gates. The KT-100 contains all the intelligence and (flush mount) or on a surface back box specially designed
necessary inputs/outputs to manage two readers on one for it.
door. Or link the KT-100 with other controllers (via RS-485
connection) to control thousands of readers. External Alarm Interface
The KT-100 can interface with an external intrusion alarm
Easy Firmware Updates system. An authorized individual can arm or disarm the
KT-100 features flash memory for easy firmware updates. alarm system simply by presenting his/her card to a
The controller’s firmware can be updated from any reader.
EntraPass workstation in just a few minutes. Flash
memory saves time by allowing system updates from a Network Connectivity
PC without having to update each controller individually. The KT-IP (IP controller module) provides affordable WAN/
LAN network connectivity for the KT-100 mini door
Trouble Supervision controller.
The KT-100 constantly supervises the power supply,
short-circuit and surge conditions and reports status to the In this setup, the KT-100 is first connected to a VC-485
EntraPass software. The power output is protected against (RS-232/RS-485 interface). Then the VC-485 is
short-circuits and surges by a self-resetting PTC.The connected to the KT-IP. If there is a loss of communication
equipment is also monitored for failure or tampering. with one of the controllers, the VC-485 will preserve
communication with the other controllers. The KT-IP relays
information between the KT-100 and the EntraPass
Multi-Site Gateway.
01/14 48
