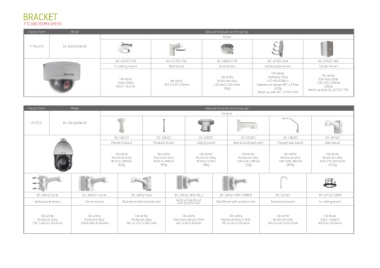

CKET Model Relevant brackets and housings
Indoor
PTZ AND ZOOM CAMERA

Product form

3'' Mini PTZ DS-2DE3204W-DE

DS-1227ZJ-PT6 DS-1273ZJ-PT6 DS-1280ZJ-PT6 DS-1275ZJ-SUS DS-1276ZJ-SUS
In-ceiling mount Wall mount Junction Box Corner mount
Vertical pole mount
Hik white Hik white Hik white Hik white
Steel+Platic 183.5×140×232mm Aluminum alloy Hik white Stainless Steel
Φ210×79.3mm 136.5x42×162.5mm Stainless Steel 126×105×250mm
127×46×250mm
280g Diameter of clamp: Φ67-127mm 2280g
Match up with DS_1273ZJ-PT6
1205g
Match up with DS_1273ZJ-PT6

Product form Model Relevant brackets and housings
IR PTZ 9 DS-2DE4220IW-DE Outdoor

DS-1661ZJ DS-1662ZJ DS-1663ZJ DS-1618ZJ DS-1660ZJ DS-1604ZJ
Pendant mount Pendant mount Ceiling mount Wall mount(short arm) Parapet wall mount Wall mount

Hik white Hik white Hik white Hik white Hik white Hik white
Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
Φ116.5×200mm Φ116.5×500mm Φ116.5×57mm 110×145×189mm 180×950×800mm 255×171×355.5mm

600g 960g 380g 550g 2900g 2150g

DS-1604ZJ-pole DS-1604ZJ-corner DS-1604ZJ-box DS-1604ZJ-BOX-POLE DS-1604ZJ-BOX-CORNER DS-1619ZJ DS-1671ZJ-SDM9
Vertical pole mount Corner mount Wall mount with junction box Vertical Pole Mount Wall Mount with junction box Gooseneck mount In-ceiling mount
with junction box
Hik white Hik white Hik white Hik white Hik white Hik Black
Aluminum alloy Aluminum alloy Aluminum alloy Hik white Aluminum alloy & stee Aluminum alloy Steel + plastic
170.7×261.8×355.5mm 206.8×261.8×465mm 281.2×170.7×395.5mm Aluminum alloy & steel 255.5×314×542.5mm 455.2×130.4×841.5mm Φ232.9×142.6mm

222×139.3×422mm
