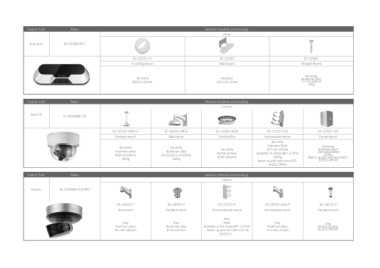

Page 113 - Hikvision - Ghid rapid- 2017-Q4

duct form Model Relevant brackets and housings
Dual-lens iDS-2CD6810F/C indoor

DS-1227ZJ-P1 DS-2102ZJ DS-1299ZJ
In-ceiling mount Wall mount Pendant Mount

Hik white Hik white Hik white
Φ253.4×8.5mm 194×110×50mm Aluminum Alloy
77×77×198mm
Relevant brackets and housings
Outdoor 165g

Product form Model
Dome 30 DS-2CD6986F-(H)

DS-1271ZJ-DM30-E DS-1605ZJ-DM30 DS-1280ZJ-BQ30 DS-1275ZJ-SUS DS-1276ZJ-SUS
Pendant mount Wall mount Junction Box Corner mount
Vertical pole mount
Hik white Hik white Hik white Hik white
Aluminum alloy Aluminum alloy Aluminum alloy Hik white Stainless Steel
Φ205.6×359mm 205.6x183.5×333.6mm Φ195×38.5mm Stainless Steel 126X105X250mm
127×46×250mm
1920g 1620g Diameter of clamp: Φ67-127mm 2280g
Match up with wall mount(DS-
1205g
Match up with wall mount(DS- 1605ZJ-DM30)

1605ZJ-DM30)

Product form Model Relevant brackets and housings
PanoVu DS-2CD6A64F-IHS/NFC Outdoor

DS-1602ZJ-P DS-1663ZJ-P DS-1673ZJ-P DS-1602ZJ-pole-P DS-1661ZJ-P
Wall mount Pendant mount Vertical pole mount Pendant mount
Horizontal pole mount
Grey Grey Grey Grey
Aluminum alloy Aluminum alloy Grey Aluminum alloy Aluminum alloy
97×182×305mm Φ116.5×57mm Steel 117×194×310mm Φ116.5×200mm
Diameter of the clamp Φ67-127mm
（Match up with DS-1661ZJ-P, DS-
1663ZJ-P）
