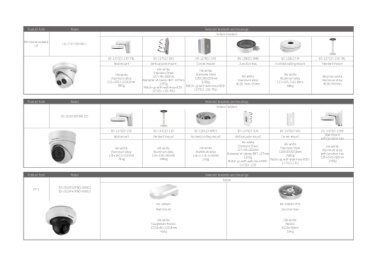

Page 112 - Hikvision - Ghid rapid- 2017-Q4

Product form Model Relevant brackets and housings
DS-2CD23X5FWD-I Indoor/Outdoor
Mini dome camera
18

DS-1273ZJ-130-TRL DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1280ZJ-DM8 DS-1281ZJ-M DS-1271ZJ-130-TRL
Wall mount Vertical pole mount Corner mount Junction box Inclined ceiling mount Pendant mount

Hik white Hik white Hik white Hik white Hik white Hikvision white
Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
131×183.5×228.5mm Stainless Steel Stainless Steel Φ126.7mm×35mm 157×165.7×61.8mm Φ150×567mm
127×46×250mm 126X105X250mm
890g Diameter of clamp: Φ67-127mm 586g
2280g
1205g Match up with wall mount(DS-
Match up with wall mount(DS-
1273ZJ-130-TRL)
1273ZJ-130-TRL)

Product form Model Relevant brackets and housings
DS-2CD2HX5FWD-IZS Indoor/Outdoor

DS-1473ZJ-135 DS-1471ZJ-135 DS-1281ZJ-DM23 DS-1475ZJ-SUS DS-1476ZJ-SUS DS-1473ZJ-135B
Wall mount Pendant mount Inclined ceiling mount Wall mount
Vertical pole mount Corner mount
Hik white Hik white Hik white with junction box
Aluminum alloy Aluminum alloy Aluminum alloy Hik white Hik white
136×183.5×230mm 150×150×565mm 136.3×136.3×48mm Stainless Steel Stainless Steel Hik white
127×46×250mm 126X105X250mm Aluminum alloy
704g 1900g 245g Diameter of clamp: Φ67-127mm with junction box
2280g 136×243×290mm
1205g Match up with wall mount(DS-
Match up with wall mount(DS- 1490g
1473ZJ-135)
1473ZJ-135)

Product form Model Relevant brackets and housings
PT 5 Indoor
DS-2CD2F22FWD-I(W)(S)
DS-2CD2F42FWD-I(W)(S)

DS-1294ZJ DS-1280ZJ-PT3
Wall mount Junction box

Hik white Hik white
Toughened Plastic Plastic
223.9×80×125.8mm
Φ120×40mm
450g 104g
