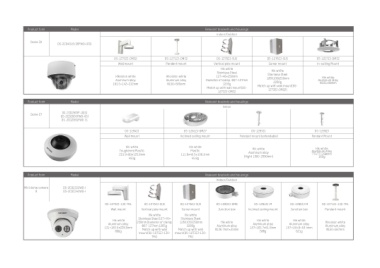

Page 111 - Hikvision - Ghid rapid- 2017-Q4

duct form Model Relevant brackets and housings
Dome 32 DS-2CD4D16/26FWD-IZ(S) indoor/Outdoor

DS-1273ZJ-DM32 DS-1271ZJ-DM32 DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1227ZJ-DM32
Wall mount Pendent mount Vertical pole mount In-ceiling Mount
Corner mount
Hikvision white Hikvision white Hik white Hik white
Aluminum alloy Aluminum alloy Stainless Steel Hik white Aluminum alloy
183.5×142×232mm Φ150×565mm 127×46×250mm Stainless Steel
Diameter of clamp: Φ67-127mm 126X105X250mm Φ225×98mm

1205g 2280g
Match up with wall mount(DS- Match up with wall mount(DS-

1273ZJ-DM32 1273ZJ-DM32)

Product form Model Relevant brackets and housings
Dome 27 Indoor
DS-2CD29XXF-(I)(S)
DS-2CD2935FWD-I(S)
DS-2CD2955FWD-IS

DS-1294ZJ DS-1281ZJ-DM27 DS-1297ZJ DS-1299ZJ
Wall mount Inclined ceiling mount Pendant mount (extendable) Pendant Mount

Hik white Hik white Hik white Hik white
Toughened Plastic Plastic Aluminum alloy Aluminum Alloy
223.9×80×125.8mm (Hight 1000-2000mm) 77×77×198mm
111.8×40.5×108.3mm
450g 45.8g 165g

Product form Model Relevant brackets and housings
Indoor/Outdoor
Mini dome camera DS-2CD2322WD-I
8 DS-2CD2342WD-I

DS-1273ZJ-130-TRL DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1280ZJ-DM8 DS-1281ZJ-M DS-1280ZJ-M DS-1271ZJ-130-TRL
Wall mount Junction box Inclined ceiling mount Junction box Pendant mount
Vertical pole mount Corner mount
Hik white Hik white Hikvision white
Aluminum alloy Hik white Hik white Aluminum alloy Aluminum alloy
131×183.5×228.5mm Φ126.7mm×35mm Φ150×567mm
Stainless Steel 127×46× Stainless Steel Hik white Hik white
890g Aluminum alloy Aluminum alloy
250mm Diameter of clamp: 126X105X250mm 157×165.7×61.8mm 157×184.8×53.4mm

Φ67-127mm 1205g 2280g 586g 621g

Match up with wall Match up with wall

mount(DS-1273ZJ-130- mount(DS-1273ZJ-130-

TRL) TRL)
