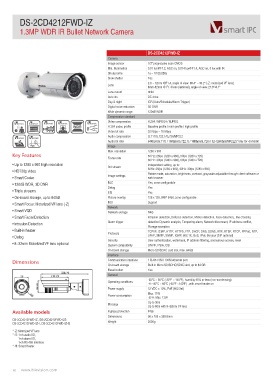

Page 80 - Hikvision Products Catalog 2015
P. 80
2CD4212FWD-IZ
1.3MP WDR IR Bullet Network Camera
CODEC WDR Camera DS-2CD4212FWD-IZ
Image sensor
VQD Min. illumination 1/3” progressive scan CMOS
Shutter time 0.01 lux@F1.2, AGC on, 0.014 lux@F1.4, AGC on, 0 lux with IR
Key Features Slow shutter 1s ~ 1/100,000s
Yes
• Up to 1280 x 960 high resolution Lens 2.8 ~ 12mm @F1.4, angle of view: 98.4° ~ 30.2° (-Z: motorized VF lens)
• HD720p video 8mm-32mm @ F1.4 lens (optional), angle of view: 27.8°-9.1°
• Smart Codec Lens mount Φ14
• 120dB WDR, 3D DNR Auto iris DC drive
• Triple streams Day & night ICR (Auto/Schedule/Alarm Trigger)
• On-board storage, up to 64GB Digital noise reduction 3D DNR
• Smart Focus: Motorized VF lens (-Z) Wide dynamic range 120dB WDR
• Smart VQD Compression standard
• Smart Facial Detection Video compression H.264 / MPEG4 / MJPEG
• Intrusion Detection H.264 codec profile Baseline profile / main profile / high profile
• Built-in heater Video bit rate 32 Kbps ~ 16 Mbps
• Defog Audio compression G.711/G.722.1/G.726/MP2L2
• 8~32mm Motorized VF lens optional Audio bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) *only for -S model
Dimensions Max. resolution 1280 x 960
50 Hz: 25fps (1280 x 960), 50fps (1280 x 720)
Available models Frame rate 60 Hz: 30fps (1280 x 960), 60fps (1280 x 720)
Independent setting, up to:
DS-2CD4212FWD-IZ , DS-2CD4212FWD-IZS 3rd stream 50Hz: 25fps (1280 x 960), 60Hz: 30fps (1280 x 960)
DS-2CD4212FWD-IZH , DS-2CD4212FWD-IZHS Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or
* -Z: Motorized VF lens Image settings web browser
* -S: 1-ch audio I/O, Yes, zone configurable
BLC Yes
1-ch alarm I/O, Defog Yes
1-ch RS-485 interface EIS 128 x 128, BMP 24bit, zone configurable
* -H: Smart Heater Picture overlay Support
ROI
Network NAS
Network storage Intrusion detection, Defocus detection, Motion detection, Face detection,, line crossing
detection Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict,
Alarm trigger Storage exception
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
Protocols UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
User authentication, watermark, IP address filtering, anonymous access, reset
Security ONVIF, PSIA, CGI
System compatibility Micro SD/SDXC card slot, max. 64GB
On-board storage
Interface 1 RJ45 10M / 100M ethernet port
Communication interface Built-in Micro SD/SDHC/SDXC slot, up to 64 GB
On-board storage Yes
Reset button
General -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
-H: -40°C ~ 60°C (-40°F ~140°F) , with smart heater on
Operating conditions 12 VDC ± 10%, PoE (802.3af)
Max. 11W
Power supply -Z/-H: Max. 12W
Up to 30m
Power consumption Up to 80m with 8~32mm VF lens
IP66
IR range 98 x 105 × 328.8mm
2000g
Ingress protection
Dimensions
Weight
80 www.hikvision.com
