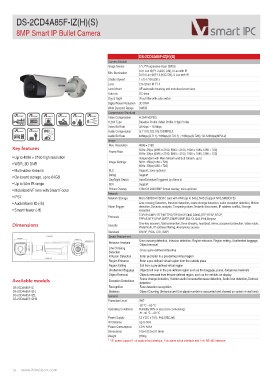

P. 78
2CD4A85F-IZ(H)(S)
8MP Smart IP Bullet Camera
DS-2CD4A85F-IZ(H)(S)
Camera Module
Image Sensor 1/1.7” Progressive Scan CMOS
Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Lens 2.8-12mm @ F1.4
Lens Mount AF automatic focusing and motorized zoom lens
Auto-iris DC drive
Day & Night IR cut filter with auto switch
Digital Noise Reduction 3D DNR
Wide Dynamic Range DWDR
Compression Standard
Video Compression H.264/ MJPEG
CODEC H.264 Type Baseline Profile / Main Profile / High Profile
IP67 Video Bit Rate 32 Kbps – 16 Mbps
Key features Audio Compression G.711/G.722.1/G.726/MP2L2
• Up to 4096 × 2160 high resolution
• WDR, 3D DNR Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
• Multi-video streams
• On-board storage, up to 64GB Image
• Up to 50m IR range
• Motorized VF lens with Smart Focus Max. Resolution 4096 × 2160
• IP67
• Audio/Alarm IO (-S) Frame Rate 50Hz: 25fps (4096 × 2160, 3840 × 2160, 1920 × 1080, 1280 × 720)
• Smart Heater (-H) 60Hz: 30fps (4096 × 2160, 3840 × 2160, 1920 × 1080, 1280 × 720)
Dimensions Image Settings Independent with Main Stream and Sub Stream, up to
50Hz: 25fps(1280 × 720)
Available models 60Hz: 30fps(1280 × 720)
DS-2CD4A85F-IZ, BLC Support, zone optional
DS-2CD4A85F-IZH,
DS-2CD4A85F-IZS, Defog Support
DS-2CD4A85F-IZHS
Day/Night Switch Auto/Schedule/Triggered by Alarm In
ROI Support
Picture Overlay 128x128 24bit BMP format overlay, zone optional
Network
Network Storage Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS,SMB/CIFS)
Alarm Trigger Line crossing Detection, Intrusion detection, scene change detection, audio exception detection, Motion
detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage
exception
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video mask,
Watermark, IP address filtering, Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Smart Feature-set Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage,
Object removal
Behavior Analysis
Cross a pre-defined virtual line
Line Crossing
Detection
Intrusion Detection Enter and loiter in a pre-defined virtual region
Region Entrance Enter a pre-defined virtual region from the outside place
Region Exiting Exit from a pre-defined virtual region
Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections
Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus
detection
Recognition Face detection recognition
Statistics Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
Protection Level IP67
Operating Conditions -30 °C – 60 °C
Humidity 95% or less (non-condensing)
-H: -40 °C – 60 °C
Power Supply 12 V DC ± 10%, PoE (802.3af)
IR Distance Up to 50m
Power Consumption 12W MAX
Dimensions 100×103.9×311.8mm
Weight 2000g
* “-S” series support 1-ch audio in/out interface, 1-ch alarm in/out interface and 1-ch RS-485 interface
