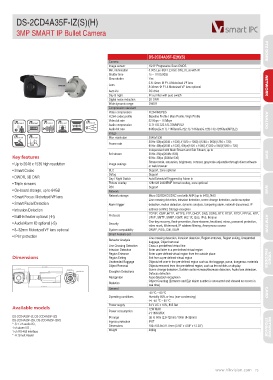

Page 75 - Hikvision Products Catalog 2015
P. 75
2CD4A35F-IZ(S)(H)
3MP SMART IP Bullet Camera
Camera DS-2CD4A35F-IZ(H)(S) PTZ DOME
Image sensor
Min. illumination 1/2.8” Progressive Scan CMOS NETWORK
Shutter time 0.005 Lux @(F1.2,AGC ON), 0 Lux with IR
CODEC WDR Slow shutter 1s ~ 1/100,000s ANALOG
Yes
VQD Lens 2.8-12mm @ F1.4 Motorized VF lens DVR
8-32mm @ F1.4 Motorized VF lens optional
Key features Auto iris DC drive NVR
• Up to 2048 x 1536 high resolution Day & night IR cut filter with auto switch
• Smart Codec Digital noise reduction 3D DNR ATM DVR
• DWDR, 3D DNR Wide dynamic range DWDR
• Triple streams Compression standard
• On-board storage, up to 64GB Video compression H.264/ MJPEG
• Smart Focus: Motorized VF lens H.264 codec profile Baseline Profile / Main Profile / High Profile
• Smart Facial Detection Video bit rate 32 Kbps – 16 Mbps
• Intrusion Detection Audio compression G.711/G.722.1/G.726/MP2L2
• Built-in heater optional (-H) Audio bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
• Audio/Alarm IO optional (-S) Image
• 8~32mm Motorized VF lens optional Max. resolution 2048x1536
• IP67 protection 50Hz: 50fps(2048 × 1536) /(1920 × 1080) /(1280 × 960)/(1280 × 720)
Frame rate 60Hz: 48fps(2048 × 1536), 60fps(1920 × 1080) /(1280 × 960)/(1280 × 720)
Dimensions Independent with Main Stream and Sub Stream, up to VIDEO
3rd stream 50Hz: 25fps(2048x1536) ENCODER
60Hz: 30fps (2048x1536)
Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software CARD
or web browser
Available models BLC Support, zone optional NETWORK
Defog Support STORAGE
DS-2CD4A35F-IZ, DS-2CD4A35F-IZS Day / Night Switch Auto/Schedule/Triggered by Alarm In
DS-2CD4A35F-IZH, DS-2CD4A35F-IZHS Picture overlay 128x128 24bit BMP format overlay, zone optional
* -S: 1-ch audio I/O, ROI Support
1-ch alarm I/O , Network
1-ch RS-485 interface Network storage Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS
* -H: Smart Heater Line crossing detection, intrusion detection, scene change detection, audio exception
Alarm trigger detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP
address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection,
video mask, Watermark, IP address filtering, Anonymous access
System compatibility ONVIF, PSIA, CGI, ISAPI
Smart Feature-set
Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended
Behavior Analysis baggage, Object removal
Cross a pre-defined virtual line
Line Crossing Detection Enter and loiter in a pre-defined virtual region
Intrusion Detection Enter a pre-defined virtual region from the outside place
Region Entrance Exit from a pre-defined virtual region
Region Exiting Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Unattended Baggage Objects removed from the pre-defined region, such as the exhibits on display.
Object Removal Scene change detection, Sudden audio increase/decrease detection, Audio loss detection,
Defocus detection
Exception Detections Face detection recognition
Object Counting (Entrance and Exit object number is accounted and showed on screen in
Recognition real time)
Statistics -30 °C – 60 °C
General Humidity 95% or less (non-condensing)
-H: -40 °C – 60 °C
Operating conditions 24 V AC ± 10%, 802.3at
12W MAX
Power supply -H:18W MAX
Up to 50m (2.8-12mm) /100m (8-32mm)
Power consumption IP67
100×103.9×311.8mm (3.93” x 4.09” x 12.28”)
IR range 2000g
Ingress protection
Dimensions
Weight
www.hikvision.com 75
