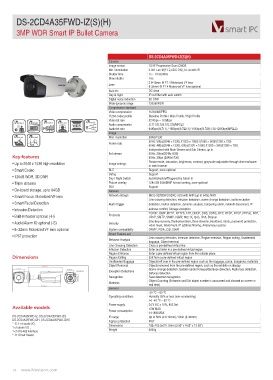

P. 76
2CD4A35FWD-IZ(S)(H)
3MP WDR Smart IP Bullet Camera
CODEC WDR Camera DS-2CD4A35FWD-IZ(S)(H)
Image sensor
VQD Min. illumination 1/2.8” Progressive Scan CMOS
Shutter time 0.001 Lux @(F1.2,AGC ON), 0 Lux with IR
Key features Slow shutter 1s ~ 1/100,000s
• Up to 2048 x 1536 high resolution Yes
• Smart Codec Lens 2.8-12mm @ F1.4 Motorized VF lens
• 120dB WDR, 3D DNR 8-32mm @ F1.4 Motorized VF lens optional
• Triple streams Auto iris DC drive
• On-board storage, up to 64GB Day & night IR cut filter with auto switch
• Smart Focus: Motorized VF lens Digital noise reduction 3D DNR
• Smart Facial Detection Wide dynamic range 120dB WDR
• Intrusion Detection Compression standard
• Built-in heater optional (-H) Video compression H.264/ MJPEG
• Audio/Alarm IO optional (-S) H.264 codec profile Baseline Profile / Main Profile / High Profile
• 8~32mm Motorized VF lens optional Video bit rate 32 Kbps – 16 Mbps
• IP67 protection Audio compression G.711/G.722.1/G.726/MP2L2
Audio bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Dimensions Image
Max. resolution 2048x1536
Available models 50Hz: 50fps(2048 × 1536) /(1920 × 1080) /(1280 × 960)/(1280 × 720)
Frame rate 60Hz: 48fps(2048 × 1536), 60fps(1920 × 1080) /(1280 × 960)/(1280 × 720)
DS-2CD4A35FWD-IZ, DS-2CD4A35FWD-IZS Independent with Main Stream and Sub Stream, up to
DS-2CD4A35FWD-IZH, DS-2CD4A35FWD-IZHS 3rd stream 50Hz: 25fps(2048x1536)
* -S: 1-ch audio I/O, 60Hz: 30fps (2048x1536)
1-ch alarm I/O , Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software
1-ch RS-485 interface or web browser
* -H: Smart Heater BLC Support, zone optional
Defog Support
Day / Night Switch Auto/Schedule/Triggered by Alarm In
Picture overlay 128x128 24bit BMP format overlay, zone optional
ROI Support
Network
Network storage Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS
Line crossing detection, intrusion detection, scene change detection, audio exception
Alarm trigger detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP
address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection,
video mask, Watermark, IP address filtering, Anonymous access
System compatibility ONVIF, PSIA, CGI, ISAPI
Smart Feature-set
Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended
Behavior Analysis baggage, Object removal
Cross a pre-defined virtual line
Line Crossing Detection Enter and loiter in a pre-defined virtual region
Intrusion Detection Enter a pre-defined virtual region from the outside place
Region Entrance Exit from a pre-defined virtual region
Region Exiting Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Unattended Baggage Objects removed from the pre-defined region, such as the exhibits on display.
Object Removal Scene change detection, Sudden audio increase/decrease detection, Audio loss detection,
Defocus detection
Exception Detections Face detection recognition
Object Counting (Entrance and Exit object number is accounted and showed on screen in
Recognition real time)
Statistics -30 °C – 60 °C
General Humidity 95% or less (non-condensing)
-H: -40 °C – 60 °C
Operating conditions 24 V AC ± 10%, 802.3at
12W MAX
Power supply -H:18W MAX
Up to 50m (2.8-12mm) /100m (8-32mm)
Power consumption IP67
100×103.9×311.8mm (3.93” x 4.09” x 12.28”)
IR range 2000g
Ingress protection
Dimensions
Weight
76 www.hikvision.com
