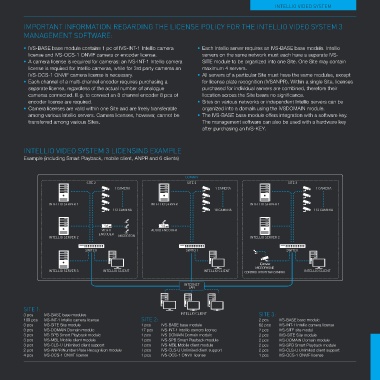

P. 23
INTELLIO VIDEO SYSTEM
IMPORTANT INFORMATION REGARDING THE LICENSE POLICY FOR THE INTELLIO VIDEO SYSTEM 3
MANAGEMENT SOFTWARE:
• IVS-BASE base module contains 1 pc of IVS-INT-1 Intellio camera • Each Intellio server requires an IVS-BASE base module. Intellio
license and IVS-OCS-1 ONVIF camera or encoder license. servers on the same network must each have a separate IVS-
SITE module to be organized into one Site. One Site may contain
• A camera license is required for cameras: an IVS-INT-1 Intellio camera maximum 4 servers.
license is required for Intellio cameras, while for 3rd party cameras an
IVS-OCS-1 ONVIF camera license is necessary. • All servers of a particular Site must have the same modules, except
for license plate recognition (IVSANPR). Within a single Site, licenses
• Each channel of a multi-channel encoder requires purchasing a purchased for individual servers are combined, therefore their
separate license, regardless of the actual number of analogue llocation across the Site bears no significance.
cameras connected. E.g. to connect an 8 channel encoder 8 pcs of
encoder license are required. • Sites on various networks or independent Intellio servers can be
organized into a domain using the IVSDOMAIN module.
• Camera licenses are valid within one Site and are freely transferable
among various Intellio servers. Camera licenses, however, cannot be • The IVS-BASE base module offers integration with a software key.
transferred among various Sites. The management software can also be used with a hardware key
after purchasing an IVS-KEY.
INTELLIO VIDEO SYSTEM 3 LICENSING EXAMPLE
Example (including Smart Playback, mobile client, ANPR and 6 clients)
SITE 2 1 CAMERA DOMAIN 1 CAMERA SITE 3 1 CAMERA
INTELLIO SERVER 1 112 CAMERA SITE 2 18 CAMERA INTELLIO SERVER 1 112 CAMERA
INTELLIO SERVER
INTELLIO SERVER 2 VIDEO AUDIO ENCODER INTELLIO SERVER 2
ENCODER MICROFON SWITCH SWITCH
SWITCH
INTELLIO SERVER 3 INTELLIO CLIENT INTELLIO CLIENT MICROPHONE INTELLIO CLIENT
INTERNET CONTROLLED BY THE CAMERA
LAN
SITE 1: INTELLIO CLIENT SITE 3:
3 pcs IVS-BASE base modules SITE 2: 2 pcs IVS-BASE base module
109 pcs IVS-INT-1 Intellio camera license 62 pcs IVS-INT-1 Intellio camera license
3 pcs IVS-SITE Site module 1 pcs IVS-BASE base module 2 pcs IVS-SITE site modul
3 pcs IVS-DOMAIN Domain module 17 pcs IVS-INT-1 Intellio camera license 2 pcs IIVS-SITE Site module
3 pcs IVS-SPB Smart Playback module 1 pcs IVS-DOMAIN Domain module 2 pcs IVS-DOMAIN Domain module
3 pcs IVS-MBL Mobile client module 1 pcs IVS-SPB Smart Playback module 2 pcs IVS-SPB Smart Playback module
3 pcs IVS-CLS-U Unlimited client support 1 pcs IVS-MBL Mobile client module 2 pcs IVS-CLS-U Unlimited client support
2 pcs IVS-ANPR Number Plate Recognition module 1 pcs IVS-CLS-U Unlimited client support 1 pcs IVS-OCS-1 ONVIF license
4 pcs IVS-OCS-1 ONVIF license 1 pcs IVS-OCS-1 ONVIF license
