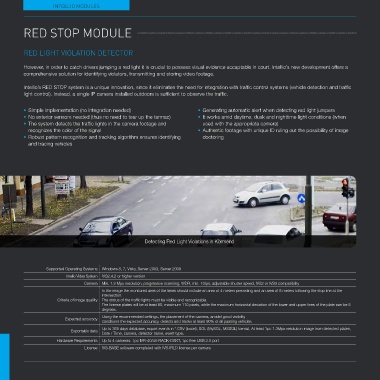

Page 26 - Intellio Catalog 2015
P. 26
ELLIO MODULES
RED STOP MODULE
RED LIGHT VIOLATION DETECTOR
However, in order to catch drivers jumping a red light it is crucial to possess visual evidence accaptable in court. Intellio’s new development offers a
comprehensive solution for identifying violators, transmitting and storing video footage.
Intellio’s RED STOP system is a unique innovation, since it eliminates the need for integration with traffic control systems (vehicle detection and traffic
light control). Instead, a single IP camera installed outdoors is sufficient to observe the traffic.
• Simple implementation (no integration needed) • Generating automatic alert when detecting red light jumpers
• No exterior sensors needed (thus no need to tear up the tarmac) • It works amid daytime, dusk and nighttime light conditions (when
• The system detects the traffic lights in the camera footage and
used with the appropriate camera)
recognizes the color of the signal • Authentic footage with unique ID ruling out the possibility of image
• Robust pattern recognition and tracking algorithm ensures identifying
doctoring
and tracing vehicles
Detecting Red Light Violations in Körmend
Supported Operating Systems Windows 8, 7, Vista, Server 2003, Server 2008
Intellio Video System
Camera IVS2.4.2 or higher version
Criteria of image quallity Min. 1.3 Mpx resolution, progressive scanning, WDR, min. 10fps, adjustable shutter speed, IVS2 or IVS3 compatibility
Expected accuracy In the image the monitored area of the lanes should include an area of 4 meters preceding and an area of 8 meters following the stop line at the
Exportable data intersection.
The status of the traffic lights must be visible and recognizable.
Hardware Requirements The license plates will be at least 60, maximum 110 pixels, while the maximum horizontal deviation of the lower and upper lines of the plate can be 5
License degrees.
Using the recommended settings, the placement of the camera, amidst good visibility
conditions the expected accuracy, detects and tracks at least 90% of all passing vehicles.
Up to 365 days database, export events in *.CSV (Excel), SQL (MySQL, MSSQL) format, At least 1pc 1.3Mpx resolution image from detected plates,
Date / Time, camera, detector name, event type.
Up to 4 cameras: 1pc IVR-40/40-RACK-DSKT, 1pc free USB 2.0 port
IVS-BASE software completed with IVS-IRLD license per camera
