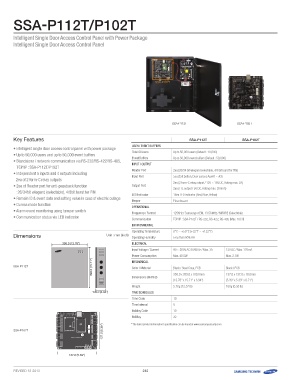

Page 242 - Catalog Samsung 2014
P. 242
-P112T/P102T
Intelligent Single Door Access Control Panel with Power Package
Intelligent Single Door Access Control Panel
SSA-P102T
SSA-P112T SSA-P102T
Key Features SSA-P112T SSA-P102T
• Intelligent single door access control panel with power package User / Event Buffers Up to 50,000 users (Default : 10,000)
• U p to 50,000 users and up to 50,000 event buffers Total ID Users Up to 50,000 event buffers (Default : 50,000)
• S tandalone / network communication via RS-232/RS-422/RS-485, Event Buffers
INPUT / OUTPUT 2ea (26/34 bit wiegand selectable, 4/8 bit burst for PIN)
TCP/IP : SSA-P112T/P102T Reader Port 5ea (Exit button, Door sensor, Aux#1 ~ #3)
• Independent 5 inputs and 4 outputs including Input Port 2ea (2 form-C relay output / 12V ~ 18V DC, Rating max. 2A)
2ea (TTL output / 5V DC, Rating max. 200mA)
2ea of 2 form-C relay outputs 16ea LED indicator (Red, Blue, Yellow)
Piezo buzzer
• 2ea of Reader port for anti-passback function Output Port
: 26/34bit wiegand (selectable), 4/8bit burst for PIN399.0 (15.71") LED Indicator 125KHz / Samsung or EM, 13.56MHz / MIFARE (Selectable)
• R emain ID & event data and setting value in case of electric outage Beeper TCP/IP : SSA-P1x2T / RS-232, RS-422, RS-485 (Max. 10CH)
• D uress mode function OPERATIONAL
• Alarm event monitoring using tamper switch Frequency / Format
• C ommunication status via LED indicator Communication
350.0 (13.78") 100.0 (3.94") Environmental
Dimensions Operating Temperature 0°C ~ +50°C (+32°F ~ +122°F)
Unit : mm (inch) Operating Humidity Less than 90% RH
35035.00.0 ((113.378."7) 8") Electrical
Input Voltage / Current 90 ~ 250V AC 50/60Hz / Max. 3A 12V DC / Max. 170mA
Max. 40.5W Max. 2.1W
Power Consumption
SSA-P112T 399.3909.(0 (1155..717")1") Mechanical Black / Steel Case, PCB Black / PCB
Color / Material 350.0 x 399.0 x 100.0mm 137.0 x 137.0 x 18.0mm
(13.78" x 15.71" x 3.94") (5.39" x 5.39" x 0.71")
Dimensions (WxHxD) 5.7Kg (12.57 lb) 160g (0.35 lb)
10010.00.0((33.9.49")4") Weight
Time Schedules
Time Code 10
Time Interval 5
Holiday Code 10
Holiday 32
13173.7.00((55..393")9") * The latest product information / specification can be found at www.samsungsecurity.com
SSA-P102T
13713.70.0(5(5..3399")")
REVISED 12-2013 242
