P. 237

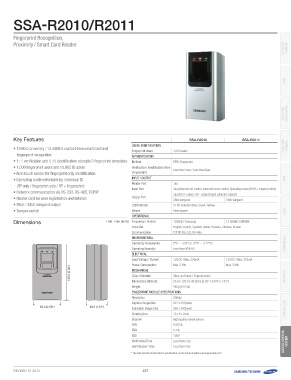

-R2010/R2011 NETWORK
Camera
Fingerprint Recognition,
Proximity / Smart Card Reader
NVR
NETWORK
PERIPHERAL
Key Features SSA-R2010 SSA-R2011 Analogue
Camera
• 125KHz proximity / 13.56MHz contact-less smart card and User / Event Buffers
fingerprint recognition
Fingerprint Users 1,000 users
• 1 : 1 verification and 1 : N identification storable 2 fingerprint templates
• 1,000 fingerprint users and 10,000 ID users AUTHENTICATION
• Auto touch sensor for fingerprint only identification
• Operating mode selectable by individual ID Method RFID, Fingerprint
(RF only / fingerprint only / RF + fingerprint) Verification / Identification Time Less than 1sec / Less than 2sec
• Network communication via RS-232, RS-485, TCP/IP (Fingerprint)
• Master card for user registration and deletion
• 26bit / 34bit wiegand output INPUT / OUTPUT DVR
• Tamper switch
Reader Port 1ea
Input Port 3ea (External LED control, External buzzer control, Operating mode (RF/RF+ Finger) control)
Output Port 2ea [Error- output, OK - output (Open collector output)]
26bit wiegand 34bit wiegand
LED Indicator 3 LED indicator (Red, Green, Yellow)
Beeper Piezo buzzer LENS
OPERATIONAL
Dimensions Unit : mm (inch) Frequency / Format 125KHz / Samsung 13.56MHz / MIFARE
Voice Out English, French, Spanish, Italian, Russian, Chinese, Korean
Communication TCP/IP, RS-232, RS-485
Environmental PERIPHERAL
Operating Temperature 0°C ~ +50°C (+32°F ~ +122°F)
Operating Humidity Less than 90% RH
Electrical
Input Voltage / Current 12V DC / Max. 290mA 12V DC / Max. 310mA
112288..00 (55..0044")") Power Consumption Max. 3.5W Max. 3.8W
Mechanical 122.0 (4.8") MONITOR
Color / Material Silver and black / Polycarbonate
Dimensions (WxHxD) 65.0 x 128.0 x 48.5mm (2.56" x 5.04" x 1.91")
Weight 240g (0.53 lb)
FINGERPRINT MODULE SPECIFICATIONS
Resolution 500dpi
6655.0.0 ((22.5566"") ) 4848.5.5((11..911"")) Capture Image Size 412 x 302pixels 45.0 (1.77") 25.0 (0.98") CONTROLLER
Extraction Image Size 260 x 300pixels
Sensing Area 13 x 15.2mm
Scanner High quality optical sensor
FAR 0.001%
FRR 0.1% Access Control
System
ESD 15KV
Verification Time Less than 1sec
Identification Time Less than 2sec
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 12-2013 237
