0 (1.77") 25.0 (0.98")

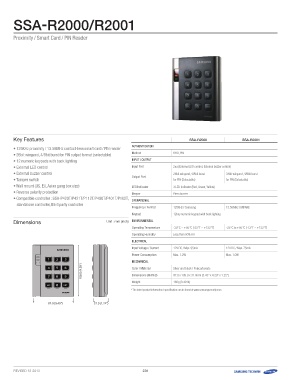

SSA-R2000/R2001

Proximity / Smart Card / PIN Reader

122.0 (4.8")
122 (4.8")

Key Features SSA-R2000 SSA-R2001
RFID, PIN
• 125KHz proximity / 13.56MHz contact-less smart card / PIN reader AUTHENTICATION
• 26bit wiegand, 4/8bit burst for PIN output format (selectable) Method

• 12 numeric ke4y7p.0a(1d.8s5"w) ith back lighti2n6.g0 (1.02") 47 (1.85") INPUT / OUTPUT 26 (1.02")

• External LED control Input Port 2ea (External LED control, External buzzer control)

• E xternal buzzer control Output Port 26bit wiegand, 4/8bit burst 34bit wiegand, 4/8bit burst
• Tamper switch for PIN (Selectable) for PIN (Selectable)

• Wall mount (US, EU, Asian gang box size) LED Indicator 3 LED indicator (Red, Green, Yellow)

• Reverse polarity protection Beeper Piezo buzzer

• Compatible controller : SSA-P420T/P421T/P112T/P400T/P401T/P102T, OPERATIONAL
standalone controller, third party controller
Frequency / Format 125KHz / Samsung 13.56MHz / MIFARE
12key numeric keypad with back lighting
Keypad

Dimensions Unit : mm (inch) Environmental
Operating Temperature
-30°C ~ +50°C (-22°F ~ +122°F) -25°C to +50°C (-13°F ~ +122°F)
Less than 90% RH
Operating Humidity

Electrical

Input Voltage / Current 12V DC / Max. 95mA 12V DC / Max. 75mA
Max. 1.2W Max. 1.0W
Power Consumption

110099..00 ((4.2299")") Mechanical

Color / Material Silver and black / Polycarbonate
87.0 x 109.0 x 31.0mm (3.43" x 4.29" x 1.22")
Dimensions (WxHxD) 160g (0.49 lb)

Weight

* The latest product information / specification can be found at www.samsungsecurity.com

877..00(3(3.4.43"3)") 3311..00 (1..2222"") )
