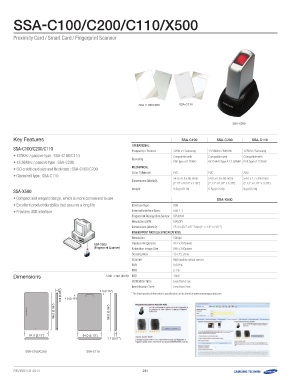

Page 244 - Catalog Samsung 2014

-C100/C200/C110/X500

Proximity Card / Smart Card / Fingerprint Scanner

SSA-C100/C200 SSA-C110

SSA-X500

Key Features SSA-C100 SSA-C200 SSA-C110

SSA-C100/C200/C110 OPERATIONAL 125KHz / Samsung 13.56MHz / MIFARE 125KHz / Samsung
• 125KHz / passive type : SSA-C100/C110 Frequency / Format
• 13.56MHz / passive type : SSA-C200 Compatible with Compatible with Compatible with
• ISO credit card size and thickness : SSA-C100/C200 Encoding PSK type of 125KHz
• Clamshell type : SSA-C110 ISO14443 type A 13.56MHz PSK type of 125KHz
Mechanical
Color / Material PVC PVC ABS

Dimensions (WxHxD) 54.0 x 0.8 x 86.0mm 54.0 x 0.8 x 86.0mm 54.0 x 1.7 x 86.0mm
(2.13" x 0.03" x 3.39") (2.13" x 0.03" x 3.39") (2.13" x 0.07" x 3.39")

SSA-X500 Weight 5.5g (0.01 lb) 5.5g (0.01 lb) 9g (0.02 lb)

• Compact and elegant design, which is more convenient to use SSA-X500
• Excellent product durability that assures a long life
Interface Type USB

• Provides USB interface External Interface Spec. USB 1.1

Fingerprint Recognition Sensor OPU01M

Resolution (DPI) 500 DPI

Dimensions (WxHxD) 25.3 x 40.7 x 67.7mm (1" x 1.6" x 2.67")

Fingerprint Module SPECIFICATIONS

Resolution 500dpi

SSA-X500 Capture Image Size 412 x 302pixels
(Fingerprint Scanner) Extraction Image Size 260 x 300pixels

Sensing Area 13 x 15.2mm

Scanner High quality optical sensor

FAR 0.001%

Dimensions Unit : mm (inch) FRR 0.1%
ESD 15KV
Verfication Time Less than 1sec

4.0 (0.16") 4.0 (0.16") Identification Time Less than 2sec

86.0 (3.39")
0.8 (0.03")

86.0 (3.39")
0.8 (0.03")

86.0 (3.39")
86.0 (3.39")
6.0 (0.24") 28.0 (1.1")
6.0 (0.24") 28.0 (1.1")
* The latest product information / specification can be found at www.samsungsecurity.com

4.0 (0.16") 4.0 (0.16")

46.0 (1.81")46.0 (1.81") 6.0 (0.24") 6.0 (0.24")

54.0 (2.13")54.0 (2.13") 54.0 (2.13")54.0 (2.13") (0.07") 1.7 (0.07")
SSA-C100/C200 1.7

SSA-C110
