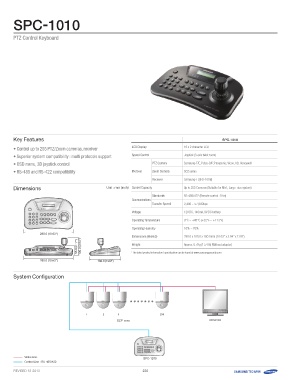

PTZ Control Keyboard
Key Features SPC-1010
• Control up to 255 PTZ/Zoom cameras, receiver LCD Display 16 x 2 character LCD
• Superior system compatibility : multi protocols support
• OSD menu, 3D joystick control Speed Control Joystick (3-axis twist zoom)
• RS-485 and RS-422 compatibility
PTZ Camera Samsung-T/E, Pelco-D/P, Panasonic, Vicon, AD, Honeywell
Protocol Zoom Camera SCZ series
Receiver Samsung-T (SRX-100B)
Dimensions Unit : mm (inch) Control Capacity Up to 255 Cameras (Suitable for Mid-, Large- size system)
RS-485/422 (Remote control : 1Km)
Standards 2,400 ~ 57,600bps
Communications
Transfer Speed
Voltage 12V DC, 140mA, 9V DC battery
Operating Temperature 0°C ~ +45°C (+32°F ~ +113°F)
28028.00.0(1(100..6633”)") Operating Humidity 10% ~ 70%
Dimensions (WxHxD) 280.0 x 100.0 x 180.0mm (10.63" x 3.94" x 7.09")
555.05.(20.(172”.)17") Weight Approx. 0.7Kg (1.54 lb) (Without adapter)
10100.00.0( (33..9944”)")
* The latest product information / specification can be found at www.samsungsecurity.com
28028.00.0(1(100..6633”)") 18108.00.0((77..0099”)")
System Configuration
Video Line SSCCPP--3x4x3x0x
Control Line : RS-485/422
SSPPCC--11001100
REVISED 12-2013 230
