P. 228
-6000

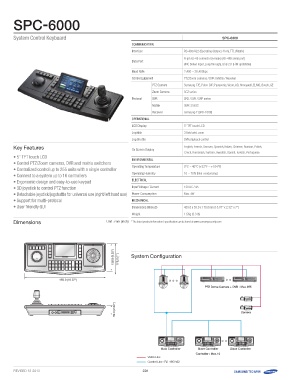

System Control Keyboard SPC-6000
Communication
Interface RS-485/422 (Operating distance 1km), TTL (Matrix)
Data Port 8-pin RJ-45 connector (Female) (RS-485 serial port)
BNC (Video input, Loop through), USB 2.0 (F/W updatable)
Baud Rate 2,400 ~ 38,400bps
Control Euipment PTZ/Zoom cameras / DVR / Matrix / Receiver
PTZ Camera Samsung-T/E, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, ELMO, Bosch, GE
Zoom Camera SCZ series
Protocol DVR SRD / SVR / SRP series
Matrix SMX-25632
Receiver Samsung-T (SRX-100B)
Operational
LCD Display 5" TFT touch LCD
Joystick 3 Axis twist zoom
Jog Shuttle DVR playback control
Key Features On Screen Display English, French, German, Spanish, Italian, Chinese, Russian, Polish,
Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• 5" TFT touch LCD Environmental
• Control PTZ/Zoom cameras, DVR and matrix switchers Operating Temperature 0°C ~ 40°C (+32°F ~ +104°F)
• Centralized control up to 255 units with a single controller Operating Humidity 10 ~ 70% (Non-condensing)
• Connect to a system up to 16 controllers Electrical
• Ergonomic design and easy-to-use keypad Input Voltage / Current 12V DC / 4A
• 3D joystick to control PTZ function Power Consumption Max. 4W
• Detachable joystick/jogshuttle for universal use (right/left hand use) Mechanical
• Support for multi-protocol Dimensions (WxHxD) 459.0 x 59.0 x 178.0mm (18.07" x 2.32" x 7")
• User friendly GUI
Weight 1.5Kg (3.3 lb)
Dimensions Unit : mm (inch) * The latest product information / specification can be found at www.samsungsecurity.com
115588..00 ((66..2222")") System Configuration
117788..00((77")")
PTZ Dome Camera + DVR : Max.255
445599..00 ((1188.0.077")") Camera
5599..00((2.2.332"2)")
Main Controller Slave Controller Slave Controller Main Con
Controller : Max.16
Video Line
REVISED 12-2013 Control Line : RS-485/422
228
