P. 225

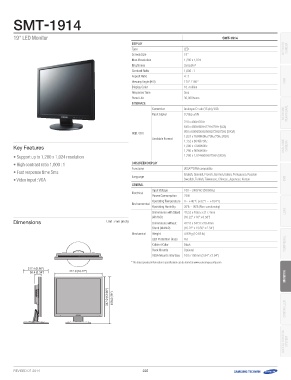

-1914 SMT-1914
19" LED Monitor LED
19"
Display 1,280 x 1,024 NETWORK
Type 250cd/m2 Camera
Screen Size 1,000 : 1
Max. Resolution 4:3 NVR
Brightness 170° / 160°
Contrast Ratio 16.7million NETWORK
Aspect Ratio 5ms PERIPHERAL
Viewing Angle (H/V) 30,000hours
Display Color
Response Time Analogue D-sub (15 pin), VGA
Panel Life 0.7Vpp ±5%
Interface
Connector
Input Signal
RGB / DVI 720 x 400@70Hz
640 x 480@60Hz/72Hz/75Hz (VGA)
Available Format 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA) Analogue
1,024 x 768@60Hz/70Hz/75Hz (XGA) Camera
Key Features 1,152 x 864@75Hz
1,280 x 720@60Hz
• Support up to 1,280 x 1,024 resolution 1,280 x 960@60Hz
• High contrast ratio 1,000 : 1 1,280 x 1,024@60Hz/75Hz (SXGA)
• Fast response time 5ms
• Video input : VGA On Screen Display VESATM DPM compatible
Functions English, Spanish, French, German, Italian, Portuguese, Russian
Swedish, Turkish, Taiwanese, Chinese, Japanese, Korean
Language DVR
100 ~ 240V AC (50/60Hz)
General 23W
0 ~ +40°C (+32°F ~ +104°F)
Electrical Input Voltage 20% ~ 90% (Non-condensing)
Power Consumption 412.0 x 406.5 x 217.4mm
(16.22" x 16" x 8.56")
Operating Temperature 412.0 x 347.0 x 59.4mm LENS
Environmental (16.22" x 13.66" x 2.34")
4.92Kg (10.85 lb)
Operating Humidity Yes
Black
Dimensions with Stand Optional
(WxHxD) 100 x 100mm (3.94" x 3.94")
Dimensions Unit : mm (inch) Dimensions without
Stand (WxHxD)
412
Mechanical Weight
LED Protection Glass
PERIPHERAL
Cabinet Color
347 Rack Mounts
406.5 VESA Mounts Interface
347.03 (4713.66") * The latest product information / specification can be found at www.samsungsecurity.com
4064.056.(516")
217.241(78.4.56") 412.04(1126.22") MONITOR
59.4 5(29..434")
CONTROLLER
Access Control
System
REVISED 07-2014 225
