P. 222

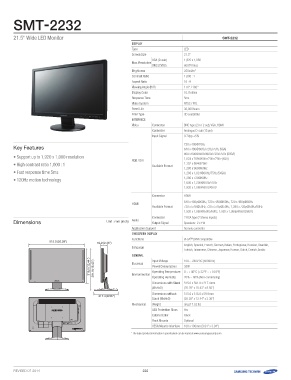

-2232 Display SMT-2232
21.5" Wide LED Monitor Type LED
21.5"
Key Features Screen Size 1,920 x 1,080
• Support up to 1,920 x 1,080 resolution 600TV lines
• High contrast ratio 1,000 : 1 Max. Resolution VGA (D-sub) 250cd/m2
• Fast response time 5ms BNC (CVBS) 1,000 : 1
• 120Hz motion technology 16 : 9
Brightness 170° / 160°
Dimensions 16.7million
Contrast Ratio 5ms
515.051(520.28") NTSC / PAL
Aspect Ratio 30,000hours
3D combfilter
Viewing Angle (H/V)
BNC type (2 in / 2 out), VGA, HDMI
Display Color Analogue D-sub (15 pin)
0.7Vpp ±5%
Response Time
Video System
Panel Life
Filter Type
Interface
Video Connector
Connector
Input Signal
RGB / DVI 720 x 400@70Hz
640 x 480@60Hz/72Hz/75Hz (VGA)
Available Format 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA)
1,024 x 768@60Hz/70Hz/75Hz (XGA)
1,152 x 864@75Hz
1,280 x 960@60Hz
1,280 x 1,024@60Hz/75Hz (SXGA)
1,280 x 720@60Hz
1,600 x 1,200@60Hz/70Hz
1,920 x 1,080@50Hz/60Hz
Connector HDMI
HDMI Available Format 640 x 480p@60Hz, 720 x 480i@60Hz, 720 x 480p@60Hz
720 x 576i@50Hz, 720 x 576p@50Hz, 1,280 x 720p@50Hz/60Hz
1,920 x 1,080i@50Hz/60Hz, 1,920 x 1,080p@50Hz/60Hz
Unit : mm (inch) Audio Connector 2 RCA type (2 Stereo inputs)
59.959(2.9.36") Output Signal Speakers : 2 x 1W
Remote controller
Application Support
VESATM DPM compatible
On Screen Display English, Spanish, French, German, Italian, Portuguese, Russian, Swedish,
Turkish, Taiwanese, Chinese, Japanese, Korean, Dutch, Danish, Arabic
Functions
Language
General
316.0 (31162.44") Electrical Input Voltage 100 ~ 240V AC (50/60Hz)
391.83(911.58.43") Power Consumption 35W
0 ~ +40°C (+32°F ~ +104°F)
Operating Temperature 20% ~ 90% (Non-condensing)
Environmental Operating Humidity
Dimensions with Stand 515.0 x 391.8 x 217.4mm
(WxHxD) (20.28" x 15.43" x 8.56")
217.421(87 .56") Dimensions without 515.0 x 316.0 x 59.9mm
Stand (WxHxD) (20.28" x 12.44" x 2.36")
Mechanical Weight 5Kg (11.02 lb)
LED Protection Glass Yes
Cabinet Color Black
Rack Mounts Optional
VESA Mounts Interface 100 x 100mm (3.94" x 3.94")
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 222
