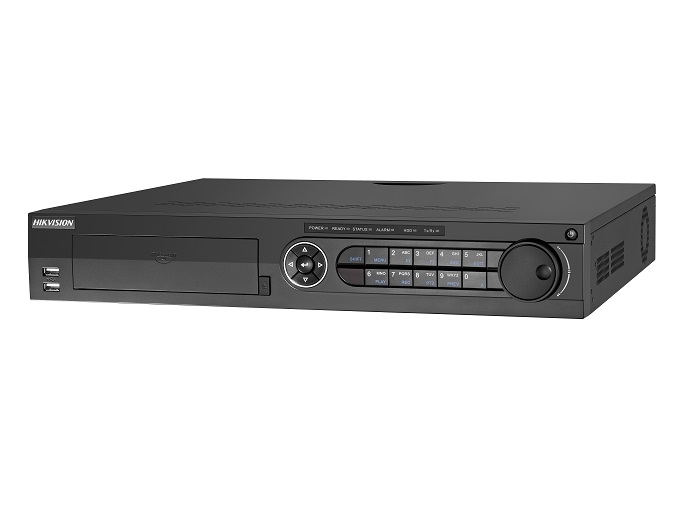

DVR TURBO HD, 16 canale, rezolutie maxima inregistrare 4MP, 4 porturi SATA, 1 port eSATA, 16in/4 out alarma, 4 in/2 out audio, pana la 10TB / HDD, 100-240 VAC.
Se recomanda utilizarea sistemului via web browser sau aplicatii dedicate Hikvision de monitorizare video
Sursa backup pentru sisteme PoE + NVR/DVR, (12)52VDC/120W, suporta backup acumulator 2 x 17Ah, clasa protectie EN 62368-1: I (prima), grad protectie EN 60529: IP20, protectie impotriva scurt-circuitarii (SCP), supraincarcarii (OLP), supratensiunii (OVP), descarcarii electrice (UVP) si sabotajului (deschiderea nedorita a carcasei), intrare Φ0,63-2,50 (AWG 22-10), iesire alimentare PoE DC plug 2,1/5,5, iesire alimentare inregistrator DC plug 2,1/5,5, iesire BAT - cabluri baterie Φ6 (M6-1,5) 45cm, dimensiuni carcasa metalica 330 x 380 x 173 (+/-2mm)
Sursa backup pentru sisteme PoE + NVR/DVR, (12)54VDC/300W, suporta backup acumulator 4 x 17Ah, clasa protectie EN 62368-1: I (prima), grad protectie EN 60529: IP20, protectie impotriva scurt-circuitarii (SCP), supraincarcarii (OLP), supratensiunii (OVP), descarcarii electrice (UVP), sabotajului (deschiderea nedorita a carcasei) si supraincalzirii (OHP), ventilator incorporat pentru racire fortata, intrare Φ0,63-2,50 (AWG 22-10), iesire alimentare PoE DC plug 2,1/5,5, iesire alimentare inregistrator DC plug 2,1/5,5, iesire BAT - cabluri baterie Φ6 (M6-1,5) 45cm, dimensiuni carcasa metalica 460 x 390 x 173 (+/-2mm)
| Brand | HIKVISION |
|---|---|
| Numar canale | 16ch |
| Carcasa | Metalica |
| VIDEO | |
| Numar intrari video | 16 |
| Compresie | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Compatibilitate | HDTVI/HDCVI/AHD/CVBS |
| PERFORMANTA | |
| Tip camere suportate | Analogic/HDTVI/AHD/HDCVI/IP Hikvision |
| Rezolutii inregistrare | 4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Frame rate | Cu 1080p lite inactiv: 4MP @ 15fps, 1080p lite/720p/VGA/WD1/4CIF/CIF @ 25fps, Cu 1080p lite activ: 4MP lite/3MP @ 15fps, 1080p lite/720p lite/VGA/WD1/4CIF/CIF @ 25fps |
| Rezolutie de redare | 4MP/3MP/1080p/720p, 6MP pentru camerele IP |
| Rezolutie max. inregistrare | 4MP |
| Aplicatii mobile | Hik-Connect |
| OPERATIONAL | |
| Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF, SNMP |
| STOCARE | |
| Interfete eSATA | Da |
| Capacitate maxima / HDD | 10 TB |
| Porturi SATA | 4 |
| INTERFETE | |
| VGA | Da |
| HDMI | Da |
| Intrari audio | 4 |
| Iesiri audio | 2 |
| Compresie audio | G.711u |
| Intrari alarma | 16 |
| Iesiri alarma | 4 |
| Interfata retea | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Interfata seriala | RS-232, RS-485, tastatura |
| USB | 2x USB 2.0, 1x USB 3.0 |
| CONDITII DE MEDIU | |
| Temperatura / umiditate functionare | -10°C ~ +55°C / 10% ~ 90% RH |
| SPECIFICATII ELECTRICE | |
| Alimentare | 100 ~ 240 VAC |
| Consum | 55W |
| SPECIFICATII FIZICE | |
| Dimensiuni | 445 x 390 x 70 mm |
| Greutate | 5 kg |
| Brand | HIKVISION |
|---|---|
| Numar canale | 16ch |
| Carcasa | Metalica |
| VIDEO | |
| Numar intrari video | 16 |
| Compresie | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Compatibilitate | HDTVI/HDCVI/AHD/CVBS |
| PERFORMANTA | |
| Tip camere suportate | Analogic/HDTVI/AHD/HDCVI/IP Hikvision |
| Rezolutii inregistrare | 4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Frame rate | Cu 1080p lite inactiv: 4MP @ 15fps, 1080p lite/720p/VGA/WD1/4CIF/CIF @ 25fps, Cu 1080p lite activ: 4MP lite/3MP @ 15fps, 1080p lite/720p lite/VGA/WD1/4CIF/CIF @ 25fps |
| Rezolutie de redare | 4MP/3MP/1080p/720p, 6MP pentru camerele IP |
| Rezolutie max. inregistrare | 4MP |
| Aplicatii mobile | Hik-Connect |
| OPERATIONAL | |
| Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF, SNMP |
| STOCARE | |
| Interfete eSATA | Da |
| Capacitate maxima / HDD | 10 TB |
| Porturi SATA | 4 |
| INTERFETE | |
| VGA | Da |
| HDMI | Da |
| Intrari audio | 4 |
| Iesiri audio | 2 |
| Compresie audio | G.711u |
| Intrari alarma | 16 |
| Iesiri alarma | 4 |
| Interfata retea | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Interfata seriala | RS-232, RS-485, tastatura |
| USB | 2x USB 2.0, 1x USB 3.0 |
| CONDITII DE MEDIU | |
| Temperatura / umiditate functionare | -10°C ~ +55°C / 10% ~ 90% RH |
| SPECIFICATII ELECTRICE | |
| Alimentare | 100 ~ 240 VAC |
| Consum | 55W |
| SPECIFICATII FIZICE | |
| Dimensiuni | 445 x 390 x 70 mm |
| Greutate | 5 kg |
