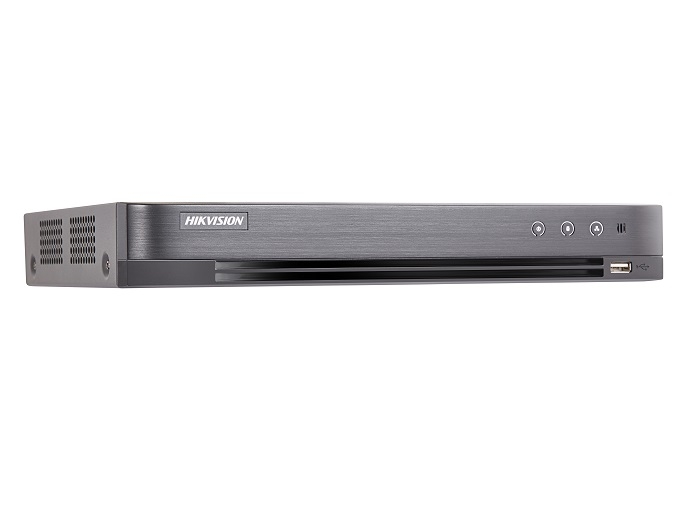

DVR 4 canale THD/AHD/CVBS, inregistrare max. 3MP 1 camera analogica, inregistrare max. 4MP 1 camera IP, audio 1xIN, 1xOUT, HDMI, VGA, 2x USB2.0, RS-485, 1xSATA, 12VDC, 40W, PoC = power over coaxial. Compatibil cu camerele 3K.
Se recomanda utilizarea sistemului via web browser sau aplicatii dedicate Hikvision de monitorizare video
Sursa backup pentru sisteme PoE + NVR/DVR, (12)52VDC/120W, suporta backup acumulator 2 x 17Ah, clasa protectie EN 62368-1: I (prima), grad protectie EN 60529: IP20, protectie impotriva scurt-circuitarii (SCP), supraincarcarii (OLP), supratensiunii (OVP), descarcarii electrice (UVP) si sabotajului (deschiderea nedorita a carcasei), intrare Φ0,63-2,50 (AWG 22-10), iesire alimentare PoE DC plug 2,1/5,5, iesire alimentare inregistrator DC plug 2,1/5,5, iesire BAT - cabluri baterie Φ6 (M6-1,5) 45cm, dimensiuni carcasa metalica 330 x 380 x 173 (+/-2mm)
Sursa backup pentru sisteme PoE + NVR/DVR, (12)54VDC/300W, suporta backup acumulator 4 x 17Ah, clasa protectie EN 62368-1: I (prima), grad protectie EN 60529: IP20, protectie impotriva scurt-circuitarii (SCP), supraincarcarii (OLP), supratensiunii (OVP), descarcarii electrice (UVP), sabotajului (deschiderea nedorita a carcasei) si supraincalzirii (OHP), ventilator incorporat pentru racire fortata, intrare Φ0,63-2,50 (AWG 22-10), iesire alimentare PoE DC plug 2,1/5,5, iesire alimentare inregistrator DC plug 2,1/5,5, iesire BAT - cabluri baterie Φ6 (M6-1,5) 45cm, dimensiuni carcasa metalica 460 x 390 x 173 (+/-2mm)
| Brand | HIKVISION |
|---|---|
| Numar canale | 4ch |
| Carcasa | Metalica |
| VIDEO | |
| Numar intrari video | 4 |
| Compresie | H.265/H.265+/H.264/H.264+ |
| Compatibilitate | HDTVI/HDCVI/AHD/CVBS |
| PERFORMANTA | |
| Tip camere suportate | Analogic/HDTVI/AHD/HDCVI/IP Hikvision |
| Frame rate | Cu 1080p lite inactiv: 3MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps, Cu 1080p lite activ: 3MP@15fps, 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps |
| Rezolutie de redare | Cu 1080p lite inactiv: 3MP/1080p/720p/VGA/WD1/4CIF/CIF, Cu 1080p lite activ: 3MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Rezolutie max. inregistrare | 3MP |
| Acces mobil | Android, iOS |
| Aplicatii mobile | Hik-Connect |
| OPERATIONAL | |
| Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF |
| STOCARE | |
| Capacitate maxima / HDD | 6 TB |
| Back up | USB, LAN, WAN |
| Porturi SATA | 1 |
| INTERFETE | |
| VGA | Da |
| HDMI | Da |
| Intrari audio | 1 |
| Iesiri audio | 1 |
| Compresie audio | G.711u |
| Interfata retea | 1x RJ45 10/100 Ethernet |
| Interfata seriala | RS-485 |
| USB | 2x USB 2.0 |
| CONDITII DE MEDIU | |
| Temperatura / umiditate functionare | -10°C ~ +55°C / 10% ~ 90% RH |
| SPECIFICATII ELECTRICE | |
| Alimentare | 48VDC |
| PoC | Da |
| Consum | 40W |
| SPECIFICATII FIZICE | |
| Dimensiuni | 315 x 242 x 45 mm |
| Greutate | 1.16 kg |
| Brand | HIKVISION |
|---|---|
| Numar canale | 4ch |
| Carcasa | Metalica |
| VIDEO | |
| Numar intrari video | 4 |
| Compresie | H.265/H.265+/H.264/H.264+ |
| Compatibilitate | HDTVI/HDCVI/AHD/CVBS |
| PERFORMANTA | |
| Tip camere suportate | Analogic/HDTVI/AHD/HDCVI/IP Hikvision |
| Frame rate | Cu 1080p lite inactiv: 3MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps, Cu 1080p lite activ: 3MP@15fps, 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps |
| Rezolutie de redare | Cu 1080p lite inactiv: 3MP/1080p/720p/VGA/WD1/4CIF/CIF, Cu 1080p lite activ: 3MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Rezolutie max. inregistrare | 3MP |
| Acces mobil | Android, iOS |
| Aplicatii mobile | Hik-Connect |
| OPERATIONAL | |
| Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF |
| STOCARE | |
| Capacitate maxima / HDD | 6 TB |
| Back up | USB, LAN, WAN |
| Porturi SATA | 1 |
| INTERFETE | |
| VGA | Da |
| HDMI | Da |
| Intrari audio | 1 |
| Iesiri audio | 1 |
| Compresie audio | G.711u |
| Interfata retea | 1x RJ45 10/100 Ethernet |
| Interfata seriala | RS-485 |
| USB | 2x USB 2.0 |
| CONDITII DE MEDIU | |
| Temperatura / umiditate functionare | -10°C ~ +55°C / 10% ~ 90% RH |
| SPECIFICATII ELECTRICE | |
| Alimentare | 48VDC |
| PoC | Da |
| Consum | 40W |
| SPECIFICATII FIZICE | |
| Dimensiuni | 315 x 242 x 45 mm |
| Greutate | 1.16 kg |
DVR Turbo HD cu 4 canale, 1 x port SATA, deep-learning bazat pe analiza sau detectie faciala, suporta compresie video H.265 Pro+/ H.265 Pro/ H.265, suporta input video HDTVI / AHD / CVI / CVBS / IP, pana la 10TB / HDD. Compatibil cu camerele 3K.
Se recomanda utilizarea sistemului via web browser sau aplicatii dedicate Hikvision de monitorizare video
