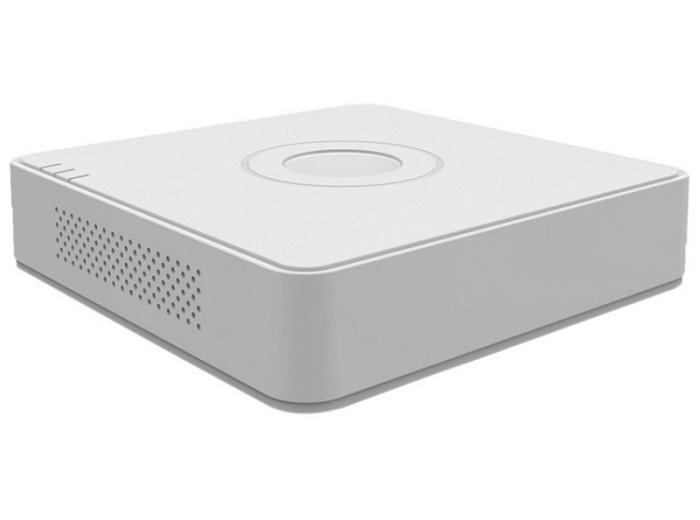

DVR 16 canale TurboHD/AHD/Analog, carcasa din plastic, 25fps@720p/canal, 25fps@1080p lite/canal, 1 canal audio IN / 1 OUT, HDMI, VGA, 2xUSB2.0, 1xSATA, 12VDC, 15W.
Se recomanda utilizarea sistemului via web browser sau aplicatii dedicate Hikvision de monitorizare video
Sursa backup pentru sisteme PoE + NVR/DVR, (12)52VDC/120W, suporta backup acumulator 2 x 17Ah, clasa protectie EN 62368-1: I (prima), grad protectie EN 60529: IP20, protectie impotriva scurt-circuitarii (SCP), supraincarcarii (OLP), supratensiunii (OVP), descarcarii electrice (UVP) si sabotajului (deschiderea nedorita a carcasei), intrare Φ0,63-2,50 (AWG 22-10), iesire alimentare PoE DC plug 2,1/5,5, iesire alimentare inregistrator DC plug 2,1/5,5, iesire BAT - cabluri baterie Φ6 (M6-1,5) 45cm, dimensiuni carcasa metalica 330 x 380 x 173 (+/-2mm)
Sursa backup pentru sisteme PoE + NVR/DVR, (12)54VDC/300W, suporta backup acumulator 4 x 17Ah, clasa protectie EN 62368-1: I (prima), grad protectie EN 60529: IP20, protectie impotriva scurt-circuitarii (SCP), supraincarcarii (OLP), supratensiunii (OVP), descarcarii electrice (UVP), sabotajului (deschiderea nedorita a carcasei) si supraincalzirii (OHP), ventilator incorporat pentru racire fortata, intrare Φ0,63-2,50 (AWG 22-10), iesire alimentare PoE DC plug 2,1/5,5, iesire alimentare inregistrator DC plug 2,1/5,5, iesire BAT - cabluri baterie Φ6 (M6-1,5) 45cm, dimensiuni carcasa metalica 460 x 390 x 173 (+/-2mm)
Brand | HIKVISION |
---|---|
Numar canale | 16ch |
Carcasa | Plastic |
VIDEO | |
Numar intrari video | 16 |
Compresie | H.264/H.264+ |
Compatibilitate | HDTVI/AHD/CVBS |
PERFORMANTA | |
Tip camere suportate | Analogic/HDTVI/AHD |
Frame rate | 1/16 fps, real time frame rate |
Rezolutie de redare | 720p/WD1/4CIF/VGA/CIF |
Rezolutie max. inregistrare | 2MP |
OPERATIONAL | |
Protocol | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnPâ„¢, HTTPS |
STOCARE | |
Capacitate maxima / HDD | 6 TB |
Back up | USB |
Porturi SATA | 1 |
INTERFETE | |
VGA | Da |
HDMI | Da |
Intrari audio | 1 |
Iesiri audio | 1 |
Compresie audio | G.711u |
Interfata retea | 1x RJ45 10/100 Ethernet |
USB | 2x USB 2.0 |
CONDITII DE MEDIU | |
Temperatura / umiditate functionare | -10°C ~ +55°C / 10% ~ 90% RH |
SPECIFICATII ELECTRICE | |
Alimentare | 12VDC |
Consum | 20W |
SPECIFICATII FIZICE | |
Dimensiuni | 285 x 210 x 45 mm |
Greutate | 1.2 kg |
Brand | HIKVISION |
---|---|
Numar canale | 16ch |
Carcasa | Plastic |
VIDEO | |
Numar intrari video | 16 |
Compresie | H.264/H.264+ |
Compatibilitate | HDTVI/AHD/CVBS |
PERFORMANTA | |
Tip camere suportate | Analogic/HDTVI/AHD |
Frame rate | 1/16 fps, real time frame rate |
Rezolutie de redare | 720p/WD1/4CIF/VGA/CIF |
Rezolutie max. inregistrare | 2MP |
OPERATIONAL | |
Protocol | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnPâ„¢, HTTPS |
STOCARE | |
Capacitate maxima / HDD | 6 TB |
Back up | USB |
Porturi SATA | 1 |
INTERFETE | |
VGA | Da |
HDMI | Da |
Intrari audio | 1 |
Iesiri audio | 1 |
Compresie audio | G.711u |
Interfata retea | 1x RJ45 10/100 Ethernet |
USB | 2x USB 2.0 |
CONDITII DE MEDIU | |
Temperatura / umiditate functionare | -10°C ~ +55°C / 10% ~ 90% RH |
SPECIFICATII ELECTRICE | |
Alimentare | 12VDC |
Consum | 20W |
SPECIFICATII FIZICE | |
Dimensiuni | 285 x 210 x 45 mm |
Greutate | 1.2 kg |
DVR 16 canale TurboHD/AHD/Analog, plastic, Max. 3MP / canal, 1 canal audio IN / 1 OUT, HDMI, VGA, 2x USB2.0, 1xSATA, 12VDC, 15W. Compatibil cu camerele 3K.
Se recomanda utilizarea sistemului via web browser sau aplicatii dedicate Hikvision de monitorizare video
