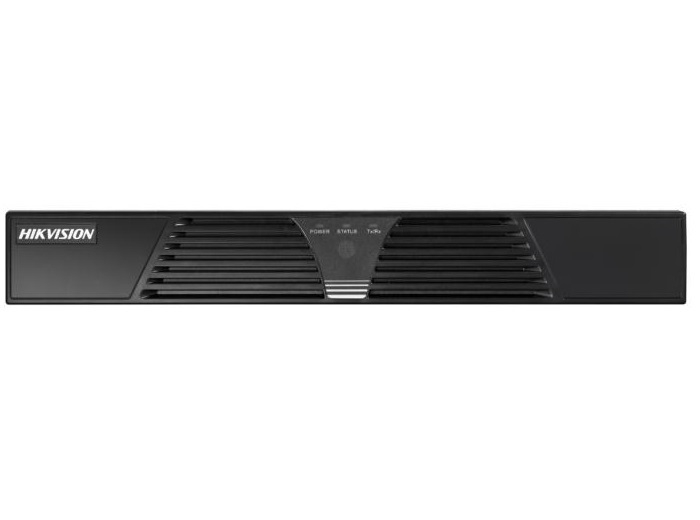

DVR 4 canale, 200fps la WD1, H.264, 25fps la WD1 (960x576) / canal, accepta 1 HDD max. 4TB, audio 1xIN, 1xOUT, RJ-45, 2xUSB2.0, RS-485, 12VDC, 10W, compatibil Android, IOS.
Se recomanda utilizarea sistemului via web browser sau aplicatii dedicate Hikvision de monitorizare video
Sursa backup pentru sisteme PoE + NVR/DVR, (12)52VDC/120W, suporta backup acumulator 2 x 17Ah, clasa protectie EN 62368-1: I (prima), grad protectie EN 60529: IP20, protectie impotriva scurt-circuitarii (SCP), supraincarcarii (OLP), supratensiunii (OVP), descarcarii electrice (UVP) si sabotajului (deschiderea nedorita a carcasei), intrare Φ0,63-2,50 (AWG 22-10), iesire alimentare PoE DC plug 2,1/5,5, iesire alimentare inregistrator DC plug 2,1/5,5, iesire BAT - cabluri baterie Φ6 (M6-1,5) 45cm, dimensiuni carcasa metalica 330 x 380 x 173 (+/-2mm)
Sursa backup pentru sisteme PoE + NVR/DVR, (12)54VDC/300W, suporta backup acumulator 4 x 17Ah, clasa protectie EN 62368-1: I (prima), grad protectie EN 60529: IP20, protectie impotriva scurt-circuitarii (SCP), supraincarcarii (OLP), supratensiunii (OVP), descarcarii electrice (UVP), sabotajului (deschiderea nedorita a carcasei) si supraincalzirii (OHP), ventilator incorporat pentru racire fortata, intrare Φ0,63-2,50 (AWG 22-10), iesire alimentare PoE DC plug 2,1/5,5, iesire alimentare inregistrator DC plug 2,1/5,5, iesire BAT - cabluri baterie Φ6 (M6-1,5) 45cm, dimensiuni carcasa metalica 460 x 390 x 173 (+/-2mm)
Brand | HIKVISION |
---|---|
VIDEO | |
Numar intrari video | 4 |
Compresie | H.264 |
Mod afisare | Matricial (4ch / 1ch) |
PERFORMANTA | |
Tip camere suportate | Analogic |
Rezolutii inregistrare | 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Frame rate | 25fps/ch la WD1 |
Mod de inregistrare | Continuu, detectie miscare, alarma, alarma/detectie miscare, program |
Rezolutie de redare | WD1 / 4CIF / 2CIF / CIF |
Rezolutie max. inregistrare | WD1 |
Acces mobil | Android, iOS |
Aplicatii mobile | iVMS-4500 |
STOCARE | |
Capacitate maxima / HDD | 4 TB |
Back up | USB, LAN |
Porturi SATA | 1 |
INTERFETE | |
VGA | Da (1920x1080) |
HDMI | Da (1920x1080) |
Intrari audio | 1 |
Iesiri audio | 1 |
Compresie audio | G.711 |
Interfata retea | 1x RJ45 10/100 Ethernet |
USB | 2x USB 2.0 |
RETEA | |
Monitorizare | iVMS4500, iVMS4200, iVMS5200, web-browser |
CONDITII DE MEDIU | |
Temperatura / umiditate functionare | -10°C ~ +55°C |
SPECIFICATII ELECTRICE | |
Alimentare | 12VDC |
Consum | 10W |
SPECIFICATII FIZICE | |
Dimensiuni | 260*242*45(mm) |
Greutate | 2kg |
Brand | HIKVISION |
---|---|
VIDEO | |
Numar intrari video | 4 |
Compresie | H.264 |
Mod afisare | Matricial (4ch / 1ch) |
PERFORMANTA | |
Tip camere suportate | Analogic |
Rezolutii inregistrare | 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Frame rate | 25fps/ch la WD1 |
Mod de inregistrare | Continuu, detectie miscare, alarma, alarma/detectie miscare, program |
Rezolutie de redare | WD1 / 4CIF / 2CIF / CIF |
Rezolutie max. inregistrare | WD1 |
Acces mobil | Android, iOS |
Aplicatii mobile | iVMS-4500 |
STOCARE | |
Capacitate maxima / HDD | 4 TB |
Back up | USB, LAN |
Porturi SATA | 1 |
INTERFETE | |
VGA | Da (1920x1080) |
HDMI | Da (1920x1080) |
Intrari audio | 1 |
Iesiri audio | 1 |
Compresie audio | G.711 |
Interfata retea | 1x RJ45 10/100 Ethernet |
USB | 2x USB 2.0 |
RETEA | |
Monitorizare | iVMS4500, iVMS4200, iVMS5200, web-browser |
CONDITII DE MEDIU | |
Temperatura / umiditate functionare | -10°C ~ +55°C |
SPECIFICATII ELECTRICE | |
Alimentare | 12VDC |
Consum | 10W |
SPECIFICATII FIZICE | |
Dimensiuni | 260*242*45(mm) |
Greutate | 2kg |
