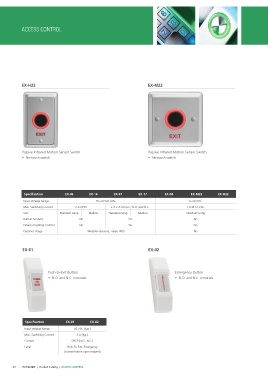

Page 41 - Rosslare Acces Control 2014

ESS CONTROL EX-M22

EX-H22

Passive Infrared Motion Sensor Switch Passive Infrared Motion Sensor Switch
• No-touch switch • No-touch switch

Specification EX-06 EX-16 EX-07 EX-17 EX-04 EX-M22 EX-H22

Input Voltage Range 10–24 VDC/VAC 8–30 VDC
Max. Switching Current 1 A @ 12 VDC
Size 2 A DPDT 2 X 2 A Form-C, N.O. and N.C. Standard Gang
Built-in Sounder
External Lighting Control Standard Gang Mullion Standard Gang Mullion No
Outdoor Usage Yes
No Yes No

No Yes

Weather-resistant, meets IP65

EX-01 EX-02

Push-to-Exit Button Emergency Button
• N.O. and N.C. terminals • N.O. and N.C. terminals

Specification EX-01 EX-02
Input Voltage Range
Max. Switching Current 30 VDC (typ.)
Contact 3 A (typ.)
Label
SPDT (N.O., N.C.)

Push-To-Exit, Emergency
(customization upon request)
