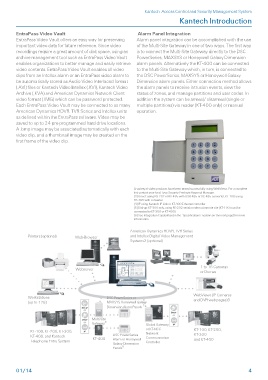

Kantech Access Control and Security Management System
Kantech Introduction
EntraPass Video Vault Alarm Panel Integration
EntraPass Video Vault offers an easy way for preserving Alarm panel integration can be accomplished with the use
important video data for future reference. Since video of the Multi-Site Gateway in one of two ways. The first way
recordings require a great amount of disk space, using an is to connect the Multi-Site Gateway directly to the DSC
archive management tool such as EntraPass Video Vault PowerSeries, MAXSYS or Honeywell Galaxy Dimension
enables organizations to better manage and easily retrieve alarm panels. Alternatively the KT-400 can be connected
video contents. EntraPass Video Vault enables all video to the Multi-Site Gateway which, in turn, is connected to
clips from an Intellex alarm or an EntraPass video alarm to the DSC PowerSeries, MAXSYS or Honeywell Galaxy
be automatically stored as Audio Video Interlaced format Dimension alarm panels. Either connection method allows
(.AVI) files or Kantech Video Intellex (.KVI), Kantech Video the alarm panels to receive intrusion events, view the
Archive (.KVA) and American Dynamics Network Client status of zones, and manage partitions and user codes. In
video format (.IMG) which can be password protected. addition the system can be armed/ disarmed (single or
Each EntraPass Video Vault may be connected to as many multiple partitions) via reader (KT-400 only) or manual
American Dynamics HDVR, TVR Series and Intellex units operation.
as defined within the EntraPass software. Video may be
saved to up to 24 pre-programmed hard drive locations.
A .bmp image may be associated automatically with each
video clip, and a thumbnail image may be created on the
first frame of the video clip.
Printers (optional) Web-Browser A variety of video products have been tested successfully using WebViews. For a complete
list, contact your local Tyco Security Products Regional Manager.
(3) Direct: using RS-232 or RS-485 with USB-485 or VC-485 converter, KT-100 using
RS-485 with converter
(4) IP using Kantech IP Link or KT-400 Ethernet controller
(5) Dial-up: KT-300 only, using RS-232 serial modem at remote site (KT-100 must be
connected to KT-300 or KT-400)
(6) See Integration Capabilities (in the “Specifications” section on the next page) for more
information
American Dynamics HDVR, TVR Series
and Intellex Digital Video Management
Systems2 (optional)
Webserver 1 to 16 Cameras
or Domes
Workstations DSC PowerSeries or
(up to 128) MAXSYS Honeywell Galaxy WebViews (IP Cameras
Dimension Alarm Panels 2 and DVR web pages)3
KT-100, KT-200, KT-300,
KT-400, and Kantech Multi-Site DSC PowerSeries Global Gateway KT-100, KT-200,
Telephone Entry System Gateway6 Alarm or Honeywell or KT-NCC KT-300
KT-400 Galaxy Dimension Network and KT-400
01/14 Panels6 Communication
Controller 4
