Kantech Access Control and Security Management System
EntraPass Corporate Edition

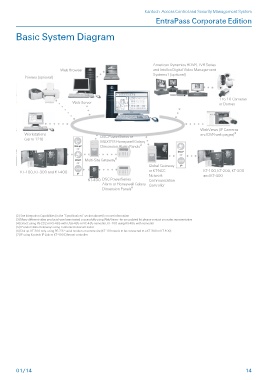

Basic System Diagram
Web Browser American Dynamics HDVR, TVR Series
and Intellex Digital Video Management
Printers (optional) Systems1 (optional)
Web Server 1 to 16 Cameras
or Domes
Workstations DSC PowerSeries or WebViews (IP Cameras
(up to 128) MAXSYS Honeywell Galaxy and DVR web pages)3
Dimension Alarm Panels2
KT-100, KT-300 and KT-400 KT-100, KT-200, KT-300
Multi-Site Gateway6 and KT-400
Global Gateway
or KT-NCC
KT-400 DSC PowerSeries Network
Alarm or Honeywell Galaxy Communication
Dimension Panels6
Controller
(2) See Integration Capabilities (in the “Specifications” section above) for more information
(3) Many different video products have been tested successfully using WebViews - for an updated list please contact you sales representative
(4) Direct: using RS-232 or RS-485 with USB-485 or VC-485 converter, KT-100 using RS-485 with converter
(5) IP under Global Gateways using Lantronix Universal Device
(6) Dial-up: KT-300 only, using RS-232 serial modem at remote site (KT-100 needs to be connected to a KT-300 or KT-400)
(7) IP using Kantech IP Link or KT-400 Ethernet controller
01/14 14
