Kantech Access Control and Security Management System
EntraPass Special Edition

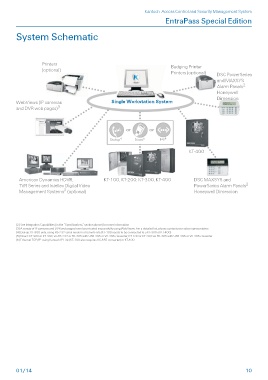

System Schematic
Printers Badging Printer DSC PowerSeries
(optional) Printers (optional) and MAXSYS
Alarm Panels2
WebViews (IP cameras Single Workstation System Honeywell
and DVR web pages)3 Dimension
Dial-up4 Direct5 IP66
KT-400
American Dynamics HDVR, KT-100, KT-200, KT-300, KT-400 DSC MAXSYS and
TVR Series and Intellex Digital Video PowerSeries Alarm Panels2
Management Systems2 (optional) Honeywell Dimesnion
(2) See Integration Capabilities (in the “Specifications” section above) for more information
(3) A variety of IP cameras and DVR web pages have been tested successfully using WebViews. For a detailed list, please contact your sales representative
(4) Dial-up: KT-300 only, using RS-232 serial modem at remote site (KT-100 needs to be connected to a KT-300 or KT-400)
(5) Direct: KT-300 or KT-400, via RS-232 or RS-485 with USB-485 or VC-485 converter; KT-100 or KT-200 via RS-485 with USB-485 or VC-485 converter
(6) Ethernet TCP/IP: using Kantech IP Link (KT-100 also requires VC-485 converter) or KT-400
01/14 10
