Kantech Access Control and Security Management System
EntraPass Global Edition

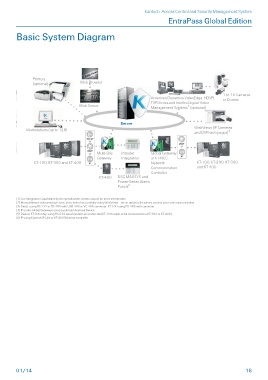

Basic System Diagram
Printers Web Browser
(optional) Web Server
American Dynamics VideoEdge, HDVR, 1 to 16 Cameras
TVR Series and Intellex Digital Video or Domes
Management Systems2 (optional)
Server WebViews (IP Cameras
and DVR web pages)3
Workstations (up to 128)
Multi-Site Intruder Global Gateway
Gateway
KT-100, KT-300 and KT-400 Integration or KT-NCC KT-100, KT-200, KT-300,
KT-400 and KT-400
Network
Communication
DSC MAXSYS and Controller
Power-Series Alarm
Panels6
(1) See Integration Capabilities (in the specification section above) for more information
(2) Many different video products have been tested successfully using WebViews – for an updated list please contact your sales representative
(3) Direct: using RS-232 or RS-485 with USB-485 or VC-485 converter, KT-100 using RS-485 with converter
(4) IP under Global Gateways using Lantronix Universal Device
(5) Dial-up: KT-300 only, using RS-232 serial modem at remote site (KT-100 needs to be connected to a KT-300 or KT-400)
(6) IP using Kantech IP Link or KT-400 Ethernet controller
