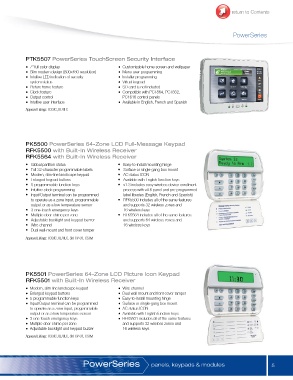

PowerSeries
PTK5507 PowerSeries TouchScreen Security Interface
••• 7" full color display •••••• Customizable home screen and wallpaper 11:16
Slim modern design (800x480 resolution) Menu user programming
Intuitive LED indication of security Installer programming AM APR 27
Virtual keypad Troubles
•••• system status SD card is not included Global Arm Stay Armed Partition Status Outputs
Picture frame feature Compatible with PC1864, PC1832, SOeptttiionngss
Clock feature Emergency
Output control • PC1616 control panels and Spanish Zone Status Photos Away Arm
Intuitive user interface Available in English, French
Approval Listings: FCC/IC, UL/ULC
PK5500 PowerSeries 64-Zone LCD Full-Message Keypad
RFK5500 with Built-In Wireless Receiver
RFK5564 with Built-In Wireless Receiver
• Global partition status • Easy-to-install mounting hinge
• Full 32-character programmable labels • Surface or single-gang box mount
• Modern, slim-line landscape keypad • AC status ICON
• Enlarged keypad buttons • Available with English function keys
• 5 programmable function keys • v1.3 includes easy wireless device enrollment
• Intuitive clock programming
• Input/Output terminal can be programmed process with v4.6 panel and pre-programmed
to operate as a zone input, programmable label libraries (English, French and Spanish)
• RFK5500 includes all of the same features
output or as a low temperature sensor
• 3 one-touch emergency keys and supports 32 wireless zones and
• Multiple door chime per zone
• Adjustable backlight and keypad buzzer 16 wireless keys
• Wire channel • RFK5564 includes all of the same features
• Dual wall-mount and front cover tamper
and supports 64 wireless zones and
16 wireless keys
Approval Listings: FCC/IC, UL/ULC, SIA CP-01, CSFM
PK5501 PowerSeries 64-Zone LCD Picture Icon Keypad
RFK5501 with Built-In Wireless Receiver
•••• Modern, slim-line landscape keypad ••••••• Wire channel
Enlarged keypad buttons Dual wall-mount and front cover tamper
5 programmable function keys Easy-to-install mounting hinge
Input/Output terminal can be programmed Surface or single-gang box mount
AC status ICON
to operate as a zone input, programmable Available with English function keys
RFK5501 includes all of the same features
••• output or as a low temperature sensor
3 one-touch emergency keys and supports 32 wireless zones and
Multiple door chime per zone
Adjustable backlight and keypad buzzer 16 wireless keys
Approval Listings: FCC/IC, UL/ULC, SIA CP-01, CSFM
