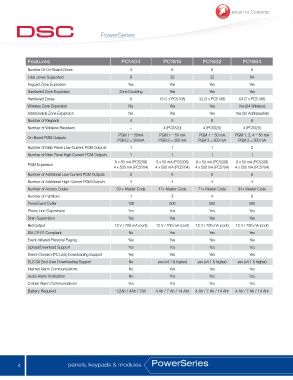

Page 8 - Catalog DSC 2014

return to Contents

PowerSeries

Features PC1404 PC1616 PC1832 PC1864

Number Of On-Board Zones 4 6 8 8
Total Zones Supported 8 32 32 64
Keypad Zone Expansion Yes Yes Yes Yes
Hardwired Zone Expansion Zone Doubling Yes Yes Yes
Hardwired Zones 8 16 (1 x PC5108) 32 (3 x PC5108) 64 (7 x PC5108)
Wireless Zone Expansion No Yes Yes Yes (64 Wireless)
Addressable Zone Expansion No Yes Yes Yes (32 Addressable)
Number of Keypads 4 8 8 8
Number of Wireless Receivers − 4 (PC5320) 4 (PC5320) 4 (PC5320)
PGM 1 = 50mA PGM 1 = 50 mA PGM 1 = 50 mA PGM 1, 3, 4 = 50 mA
On-Board PGM Outputs PGM 2 = 300mA PGM 2 = 300 mA PGM 2 = 300 mA PGM 2 = 300 mA
1 1 1 3
Number of Main Panel Low-Current PGM Outputs 1 1 1 1
Number of Main Panel High-Current PGM Outputs 8 x 50 mA (PC5208) 8 x 50 mA (PC5208) 8 x 50 mA (PC5208) 8 x 50 mA (PC5208)
4 x 500 mA (PC5204) 4 x 500 mA (PC5204) 4 x 500 mA (PC5204) 4 x 500 mA (PC5204)
PGM Expansion 8 8 8 8
4 4 4 4
Number of Additional Low-Current PGM Outputs 39 + Master Code 47+ Master Code 71+ Master Code 94+ Master Code
Number of Additional High-Current PGM Outputs 1 2 4 8
Number of Access Codes 128 500 500 500
Number of Partitions Yes Yes Yes Yes
Panel Event Buffer Yes Yes Yes Yes
Phone Line Supervision 12 V / 700 mA (cont) 12 V / 700 mA (cont) 12 V / 700 mA (cont) 12 V / 700 mA (cont)
Siren Supervision No Yes Yes Yes
Bell Output Yes Yes Yes Yes
SIA CP-01 Compliant Yes Yes Yes Yes
Event-Initiated Personal Paging Yes Yes Yes Yes
Upload/Download Support No yes (v4.1 & higher) yes (v4.1 & higher) yes (v4.1 & higher)
Direct-Connect (PC Link) Downloading Support No Yes Yes Yes
DLS SA End-User Downloading Support No Yes Yes Yes
Internet Alarm Communications Yes Yes Yes Yes
Audio Alarm Verification 1.2Ah / 4Ah / 7Ah 4 Ah / 7 Ah / 14 Ahr 4 Ah / 7 Ah / 14 Ahr 4 Ah / 7 Ah / 14 Ahr
Cellular Alarm Communications
Battery Required

4 panels, keypads & modules PowerSeries
