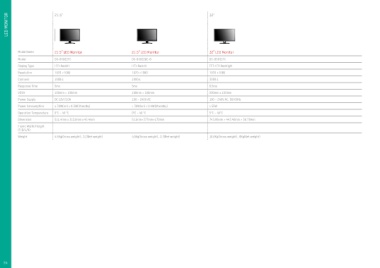

Page 84 - Hikvision - Ghid rapid- 2017-Q4

MONITOR 21.5" 32"

Model Name 21.5” LED Monitor 21.5” LED Monitor 32” LED Monitor

Model DS-D5022FC DS-D5022QE-B DS-D5032FC
Display Type LED-Backlit LED-Backlit TFT-LED Backlight
Resolution 1920 ×1080 1920 ×1080 1920 ×1080
Contrast 1000:1 1000:1 3000:1
Response Time 5ms 5ms 6.5ms
VESA 100mm × 100mm 100mm × 100mm 200mm x 100mm
Power Supply DC 12V/3.0A 100 ~ 240V AC 100 ~ 240V AC, 50/60Hz
Power Consumption < 30W(on) < 0.5W(Standby) < 30W(on) < 0.4W(Standby) ≤ 55W
Operation Temperature 0°C ~ 40 °C 0°C ~ 40 °C 5°C ~ 40°C
Dimension 511.4mm x 313.0mm x 45.4mm 511mm×377mm×170mm 743.95mm × 443.40mm × 58.70mm
Frame Width/Height
(T/B/L/R) 4.6Kg(Gross weight) , 3.2(Net weight) 4.5Kg(Gross weight) , 3.3(Net weight) 10.6Kg(Gross weight) , 8Kg(Net weight)
Weight

84
