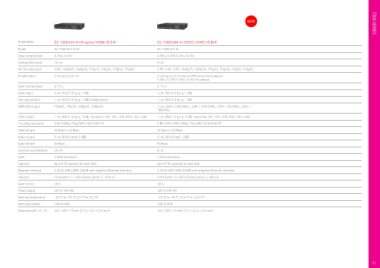

NEW 7300 SERIES
Model Name DS-7300HUHI-F4/N series TURBO HD DVR DS-7300HUHI-K4 SERIES TURBO HD DVR
Model
Video compression DS-7300HUHI-F4/N DS-7300HUHI-Kx
Analog video input H.264+/H.264 H.265+/H.265/H.264+/H.264
HD-TVI video input 16-ch 8-ch
IP video input 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
2-ch (up to 18-ch) 2-ch (up to 10-ch),Up to 8 MP resolution,Supports
H.265+/H.265/H.264+/H.264 IP cameras
Audio compression G.711u G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) 1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI/VGA output 720p25, 720p30, 1080p25, 1080p30 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding resolution 3 MP/1080p/720p/WD1/4CIF/VGA/CIF 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Video bitrate 32 Kbps to 10 Mbps 32 Kbps to 10 Mbps
Audio output 2-ch, RCA (Linear, 1 KΩ) 2-ch, RCA (Linear, 1 KΩ)
Audio bitrate 64 Kbps 64 Kbps
Synchronous playback 16-ch 8-ch
SATA 4 SATA interfaces 4 SATA interfaces
Capacity Up to 6 TB capacity for each disk Up to 8 TB capacity for each disk
Network interface 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB port Front panel: 1 × USB 2.0Rear panel: 1 × USB 3.0 Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm in/out 16/4 16/4
Power supply 100 to 240 VAC 100 to 240 VAC
Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF) -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity 10% to 90% 10% to 90%
Dimensions(W × D × H) 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
81
