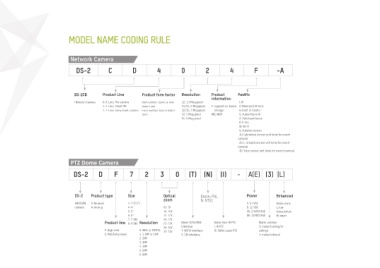

EL NAME CODING RULE

Network Camera

DS-2 C D 4 0 2 4 F -A

DS-2CD Product Line Product form factor Resolution Product Postfix
information
Hikvision Camera 6: 6-Line, Pro camera 12: 1.3 Megapixel -I: IR
4: 4-Line, Smart IPC Odd number: dome or mini 24/25: 2 Megapixel
2: 2-Line, entry-level camera dome form 32/35: 3 Megapixel F: support on-board -Z: Motorized VF lens
Even number: box or bullet 52: 5 Megapixel
form 65: 6 Megapixel storage -H: built-in heater

WD: WDR -S: Audio/Alarm IO

-A: Auto back focus

-P: P-Iris

-W: Wi-Fi

-V: Outdoor version

-10: Cylindrical sensor unit (only for covert

camera)

-20: L-shaped sensor unit (only for covert

camera)

-30: Tube sensor unit (only for covert camera)

PTZ Dome Camera

DS-2 D F 7 2 3 0 (T) (N) (I) - A(E) (3) (L)

DS-2 Product type Size Optical Blank: PAL Power Enhanced
zoom N: NTSC
HIKVISION D: Network 2: 2”(2.5”) A: 24 VAC Blank: none
camera A: Analog 4: 4” 03: 3X D: 12 VDC L: low-
5: 5” 10: 10X AE: 24VAC&PoE temperature
Product line 6: 6” 12: 12X DE: 12VDC&PoE W: wiper
7: 7”(IR) 20: 23X
23: 23X Blank: RJ45/BNC Blank: Non-IR PTZ Blank: outdoor
8: 8”(IR) Resolution 30: 30X interface I: IR PTZ 3: indoor (celling/in-
37: 37X T: HDTVI interface I5: 500m Laser PTZ celling)
F: High-end 0: WD1 or 700TVL S: SDI interface 4: indoor (others)
E: Mid/Entry-level 1: 1.3MP or 1MP
2: 2MP
3: 3MP
4: 4MP
5: 5MP
6: 6MP
