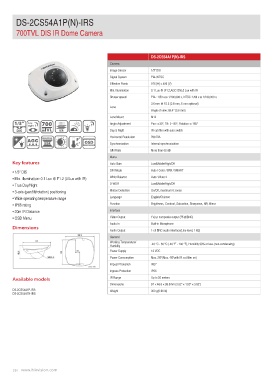

P. 150
2CS54A1P(N)-IRS
700TVL DIS IR Dome Camera
1/3” Low 700 Camera DS-2CS54A1P(N)-IRS
Light Image Sensor
DIS DIGITAL Signal System 1/3” DIS
WDR ICR Effective Pixels PAL/NTSC
Min. Illumination 976 (H) × 496 (V)
OSD Shutter speed 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR
PAL: 1/50 s to 1/100,000 s, NTSC: 1/60 s to 1/100,000 s
Key features Lens 3.6 mm @ F2.2 (2.8 mm, 6 mm optional)
Angle of view: 68.4° (3.6 mm)
• 1/3” DIS Lens Mount M12
• Min. illumination: 0.1 Lux @ F1.2 (0 Lux with IR) Angle Adjustment Pan: ± 30°, Tilt: 0 - 80°, Rotation: ± 180°
• True Day/Night Day & Night IR cut filter with auto switch
• 3-axis (pan/tilt/rotation) positioning Horizontal Resolution 700 TVL
• Wide operating temperature range Synchronization Internal synchronization
• IP66 rating S/N Ratio More than 62 dB
• 20m IR Distance Menu
• OSD Menu Auto Gain Low/Middle/High/Off
D/N Mode Auto / Color / B/W / SMART
Dimensions White Balance Auto 1/Auto 2
D-WDR Low/Middle/High/Off
Available models Motion Detection On/Off, maximum 6 zones
Language English/Chinese
DS-2CS54A1P-IRS Function Brightness, Contrast, Saturation, Sharpness, NR, Mirror
DS-2CS54A1N-IRS Interface
Video Output 1Vp-p composite output (75 Ω/BNC)
Audio In Built-in Microphone
Audio Output 1-ch BNC audio interface(Line level, 1 kΩ)
General
Working Temperature/ -40 °C - 60 °C (-40 °F - 140 °F), Humidity 90% or less (non-condensing)
Humidity 12 VDC
Power Supply Max. 2W (Max. 4W with IR cut filter on)
Power Consumption IK07
Impact Protection IP66
Ingress Protection Up to 20 meters
IR Range 97 × 46.6 × 99.5mm (3.82” × 1.83” × 3.92”)
Dimensions 300 g(0.66 lb)
Weight
150 www.hikvision.com
