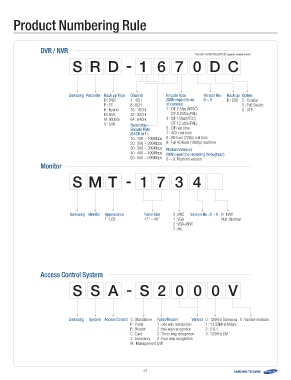

duct Numbering Rule

DVR / NVR * The SRD-1673D/1653D/873D supports coaxial control.

SR D - 1 6 7 0 D C

Samsung Recorder Back up Type Channel Encode Rate Version No : Back up Option
D : DVR 4 : 4CH (With regard to no. 0 ~ 9 D : DVD C : Coaxial
P : PC 8 : 8CH of camera)
H : Hybrid 16 : 16CH 1 : CIF 7.5fps (NTSC) S : PoE Switch
N : NVR 32 : 32CH CIF 6.25fps (PAL) U : UTP
M : Mobile 64 : 64CH
S : S/W Recording 3 : CIF 15fps(NTSC)
Encode Rate CIF 12.5fps (PAL)
(64CH or ) 5 : CIF real time
10 : 100 ~ 199Mbps 7 : 4CIF real time
20 : 200 ~ 299Mbps 8 : HD level (720p) real time
30 : 300 ~ 399Mbps 9 : Full HD level (1080p) real time
40 : 400 ~ 499Mbps
50 : 500 ~ 599Mbps Platform Version
(With regard to recording throughput)
0 ~ 9 : Platform version

Monitor

SMT - 1 7 3 4

Samsung Monitor Appearance Panel Size 0 : BNC Version No : 0 ~ 9 N : N/W
T : LED 17" ~ 40" 1 : VGA Null : Normal
2 : VGA+BNC
3 : etc.

Access Control System

SS A - S 2 0 0 0 V

Samsung System Access Control S : Standalone Panel/Reader Version 0 : 125KHz Samsung V : Vandal-resistant
P : Panel 1 : one way recognition 1 : 13.56MHz Mifare
R : Reader 2 : two way recognition 2:0&1
C : Card 3 : Three way recognition 3 : 125KHz EM
X : Accessory 4 : Four way recognition
M : Management S/W

07
