Page 18 - Catalog Hikvision 2014

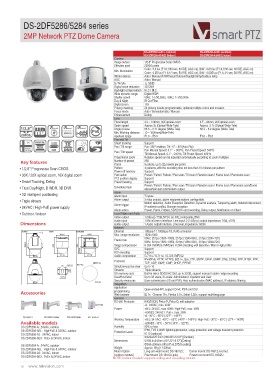

P. 18
2DF5286/5284 series
2MP Network PTZ Dome Camera
DS-2DF5286-A/AEL (outdoor) DS-2DF5284-A/AEL (outdoor)
DS-2DF5286-A3/AE3 (indoor) DS-2DF5284-A3/AE3 (indoor)
Camera
Image sensor 1/2.8" Progressive Scan CMOS
Effective pixel 2230K pixels
Color : 0.4 lux (F1.6,1/30 sec, 50 IRE, AGC on), B/W : 0.03 lux (F1.6,1/30 sec, 50 IRE, AGC on)
Min. Illumination Color : 0.05 lux (F1.6,1/1 sec, 50 IRE, AGC on), B/W : 0.005 lux (F1.6,1/1 sec, 50 IRE, AGC on)
White balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC Auto / Manual
S / N ratio ≥ 50dB
Digital noise reduction 3D DNR
Backlight compensation HLC / BLC
Wide dynamic range Digital WDR
Shutter speed 50Hz: 1-1/30,000s; 60Hz: 1-1/30,000s
Day & Night IR Cut Filter
Digital zoom 16X
Privacy masking 24 privacy masks programmable, optional multiple colors and mosaics
Focus mode Auto / Semiautomatic / Manual
Enhancement Defog
Lens
Focal length 4.3 ~ 129mm, 30X optical zoom 4.7 ~ 94mm, 20X optical zoom
Zoom speed Approx.3s (Optical Wide-Tele) Approx. 2.7s (Optical Wide-Tele)
1/2.8” Angle of view 65.5 ~ 2.11 degree (Wide-Tele) 58.3 ~ 3.2 degree (Wide-Tele)
PoE Min. Working distance 10 ~ 1500mm(Wide-Tele)
CMOS DEFOG Aperture range F1.6 ~ F5.0 F1.6 ~ F3.5
CODEC
DIGITAL Pan and Tilt Support
WDR Smart tracking
Pan / Tilt range Pan: 360° endless; Tilt: -5° ~ 90°(Auto Flip)
Intelligent ICR Pan Manual Speed: 0.1° ~ 300°/s, Pan Preset Speed: 540°/s
Positioning Pan / Tiltr speed Tilt Manual Speed: 0.1° ~ 240°/s, Tilt Preset Speed: 400°/s
Proportional zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of preset 256
Key features Patrol 8 patrols, up to 32 presets per patrol
• 1/2.8’’ Progressive Scan CMOS Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
• 30X / 20X optical zoom, 16X digital zoom Power-off memory Support
• Smart Tracking, Defog Park action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
• True Day/Night, D WDR, 3D DNR PTZ position display Support
• 3D intelligent positioning Preset freezing Support
• Triple stream Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
• 24VAC / High-PoE power supply Scheduled task reboot/Self-test action/Alarm output
• Outdoor / Indoor
Alarm
Alarm input 7 inputs
Alarm output 2 relay outputs, alarm response actions configurable
Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm, Network disconnect,
Alarm trigger IP address conflict, Storage exception
Alarm action Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client
Local Video and Audio
Video output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio input 1 Mic in/Line in interface. Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Dimensions Audio output 1 Audio output interface. Line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Outdoor Indoor Embedded
Max. image resolution 1920×1080
50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)
Frame rate 60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720)
Image compression H.264 / MJPEG / MPEG4, H.264 encoding with Baseline / Main / High profile
SVC Support
ROI encoding Support
Audio compression G.711u / G.711a / G.726 / MP2L2
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
Protocols TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Bore Size Simultaneous live view Up to 10
Unit: mm Streams Triple streams
SD memory card Built-in mirco SD/SDHC Slot, up to 32GB, support manual / alarm / edge recording
User/Host level Up to 32 users, 3 Levels: Administrator, Operator and User
Security measures User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application
Accessories programming Open-ended API, support Onvif, PSIA and CGI
Web browser IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, support multi-language
General
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
-A: 24VAC, max. 40W
Power -AEL: 24VAC, max. 60W / High-PoE, max. 40W
-A3/AE3: 24VAC / PoE+, max. 25W
-A: -30°C ~ 65°C(-22°F ~ 149°F)
DS-1601ZJ DS-1601ZJ-corner DS-1601ZJ-pole DS-1634ZJ Working Temperature -AEL: 24 VAC: -40°C ~ 65°C (-40°F ~ 149°F) / High-PoE: -30°C ~ 65°C (-22°F ~ 149°F)
Available models -A3/AE3: -10°C ~ 50°C (14°F ~ 122°F)
Humidity 90% or less
DS-2DF5286-A: 24VAC, outdoor IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
DS-2DF5286-AEL: High-PoE & 24VAC, outdoor Protection Level IK 10 (optional)
DS-2DF5286-A3: 24VAC, indoor Φ220×325.5mm (Φ8.66”×12.81”)(Outdoor)
DS-2DF5286-AE3: PoE+ & 24VAC, indoor Dimensions Φ183.4×243mm (Φ7.22”×9.57”)(Ceiling)
DS-2DF5284-A: 24VAC, outdoor Weight Φ245×236mm (Φ9.65”×9.29”)(In-ceiling)
DS-2DF5284-AEL: High-PoE & 24VAC, outdoor Approx. 5Kg (11.02Ibs)
DS-2DF5284-A3: 24VAC, indoor Mount Option Long-arm wall mount: DS-1601ZJ; Corner mount: DS-1601ZJ-corner;
DS-2DF5284-AE3: PoE+ & 24VAC, indoor (outdoor models) Pole Mount: DS-1601ZJ-pole; Power box mount:DS-1634ZJ
NOTE: Indoor models support ceiling and in-ceiling mount.
18 www.hikvision.com
