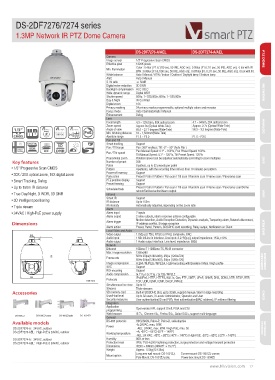

Page 17 - Catalog Hikvision 2014
P. 17
2DF7276/7274 series
1.3MP Network IR PTZ Dome Camera
DS-2DF7276-A/AEL DS-2DF7274-A/AEL PTZ DOME
Camera 1/3" Progressive Scan CMOS
Image sensor 1320K pixels
Effective pixel Color : 0.4lux ( F1.6,1/30 sec, 50 IRE, AGC on); 0.05lux (F1.6,1/1 sec, 50 IRE, AGC on); 0 lux with IR
Min. Illumination B/W : 0.03lux (F1.6,1/30 sec, 50 IRE, AGC on); 0.005lux (F1.6,1/1 sec, 50 IRE, AGC on); 0 lux with IR
White balance Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp
AGC Auto / Manual
S / N ratio ≥ 50dB
Digital noise reduction 3D DNR NETWORK
Backlight compensation HLC / BLC
Wide dynamic range Digital WDR
Shutter speed 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day & Night IR Cut Filter
Digital zoom 16X
Privacy masking 24 privacy masks programmable, optional multiple colors and mosaics
Focus mode Auto / Semiautomatic / Manual
Enhancement Defog
Lens
1/3” DEFOG PoE Focal length 4.3 ~ 129.0mm, 30X optical zoom 4.7 ~ 94mm, 20X optical zoom ANALOG
Zoom speed Approx 3s (Optical Wide-Tele) Approx. 2.7s (Optical Wide-Tele)
CMOS CODEC Angle of view 65.5 ~ 2.11 degree (Wide-Tele) 58.3 ~ 3.2 degree (Wide-Tele)
Min. Working distance 10 ~ 1,500mm(Wide-Tele) F1.6 ~ F3.5
Aperture range F1.6 ~ F5.0
Pan and Tilt
Intelligent DIGITAL ICR Smart tracking Support
Positioning WDR Pan / Tilt range Pan: 360° endless; Tilt: -2° ~ 90° (Auto Flip )
Pan / Tiltr speed Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160°/s
Key features Proportional zoom Tilt Manual Speed: 0.1° ~ 120°/s, Tilt Preset Speed: 120°/s DVR
• 1/3’’ Progressive Scan CMOS Number of preset Rotation speed can be adjusted automatically according to zoom multiples
• 30X / 20X optical zoom, 16X digital zoom Patrol 256
• Smart Tracking, Defog Pattern 8 patrols, up to 32 presets per patrol
• Up to 150m IR distance Power-off memory 4 patterns, with the recording time not less than 10 minutes per pattern
• True Day/Night, D WDR, 3D DNR Support
• 3D intelligent positioning Park action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
• Triple stream PTZ position display Support NVR
• 24VAC / High-PoE power supply Preset freezing Support
Scheduled task Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome ATM DVR
Dimensions Infrared reboot/Self-test action/Alarm output
Smart IR Support
G121 IR distance Up to 150m
IR intensity Automatically adjusted, depending on the zoom ratio
18 Alarm 7 inputs
399 Alarm input 2 relay outputs, alarm response actions configurable
Alarm output Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm, Network disconnect,
Alarm trigger IP address conflict, Storage exception
Alarm action Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client
Local Video and Audio 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Video output 1 Mic in/Line in interface. Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio input 1 Audio output interface. Line level, impedance: 600Ω
Audio output
Network 10Base-T / 100Base-TX, RJ45 connector
Ethernet 1280×960
Max. image resolution 50Hz:25fps(1280×960), 25fps (1280×720) ENCODER
Frame rate 60Hz:30fps(1280×960), 30fps (1280×720) DECODER
Image compression H.264 / MJPEG / MPEG4, H.264 encoding with Baseline / Main / High profile
245 Unit:mm SVC Support
ROI encoding Support
Accessories Audio compression G.711u / G.711a / G.726 / MP2L2 CARD
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
DS-1601ZJ DS-1601ZJ-corner DS-1601ZJ-pole DS-1634ZJ Simultaneous live view TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Streams Up to 10
SD memory card Triple streams
User/Host level Built-in SD/SDHC Slot, up to 32GB, support manual / alarm / edge recording
Security measures Up to 32 users, 3 Levels: Administrator, Operator and User
Integration User authentication(ID and PW); Host authentication(MAC address); IP address filtering
Application
programming Open-ended API, support Onvif, PSIA and CGI
Web browser IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, support multi-language
General
RS-485 protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Available models Power -A: 24VAC, max. 50W; NETWORK
-AEL: 24VAC, max. 60W / High-PoE, max. 50 STORAGE
DS-2DF7276-A: 24VAC, outdoor Working temperature --A: -30°C ~ 65°C(-22°F ~ 149°F)
DS-2DF7276-AEL: High-PoE & 24VAC, outdoor Humidity -AEL: 24 VAC: -40°C ~ 65°C (-40°F ~ 149°F) / High-PoE: -30°C ~ 65°C (-22°F ~ 149°F)
Protection level 90% or less
DS-2DF7274-A: 24VAC, outdoor Dimensions IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
DS-2DF7274-AEL: High-PoE & 24VAC, outdoor Weight Φ245 × 399mm (Φ9.65” × 15.71”)
Approx. 5.5kg(12.13Ibs)
Mount option Long-arm wall mount: DS-1601ZJ; Corner mount: DS-1601ZJ-corner;
Pole Mount: DS-1601ZJ-pole; Power box mount:DS-1634ZJ
