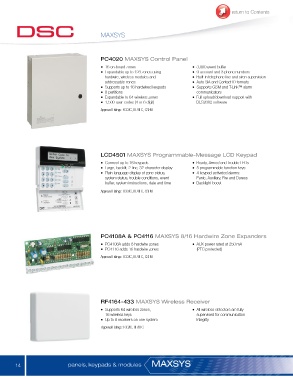

Page 18 - Catalog DSC 2014

return to Contents

MA XSYS

PC4020 MAXSYS Control Panel

•• 16 on-board zones zones using ••••• 3,000 event buffer
Expandable up to 128 9 account and 3 phone numbers
Built-in telephone line and siren supervision
hardwire, wireless modules and Auto SIA and Contact ID formats
Supports GSM and T-Link™ alarm
•••• addressable zones
Supports up to 16 hardwired keypads • cFuolml umpulonaicda/dtoorws nload support with
8 partitions DLS2002 software
Expandable to 64 wireless zones
1,500 user codes (4 or 6 digit)

Approval Listings: FCC/IC, UL/ULC, CSFM

LCD4501 MAXSYS Programmable-Message LCD Keypad

••• Connect up to 16 keypads ••• Ready, Armed and Trouble LEDs
Large, backlit, 2-line, 32-character display 5 programmable function keys
Plain-language display of zone status, 4 keypad-activated alarms:

system status, trouble conditions, event • Panic, Auxiliary, Fire and Duress
buffer, system instructions, date and time Backlight boost

Approval Listings: FCC/IC, UL/ULC, CSFM

PC4108A & PC4116 MAXSYS 8/16 Hardwire Zone Expanders

•• PC4108A adds 8 hardwire zones • AUX power rated at 250 mA
PC4116 adds 16 hardwire zones
(PTC protected)

Approval Listings: FCC/IC, UL/ULC, CSFM

RF4164-433 MAXSYS Wireless Receiver

• Supports 64 wireless zones, • All wireless detectors are fully
• 16 wireless keys supervised for communication
Up to 8 receivers on one system Integrity

Approval Listings: FCC/IC, UL/ULC

14 panels, keypads & modules MAXSYS
