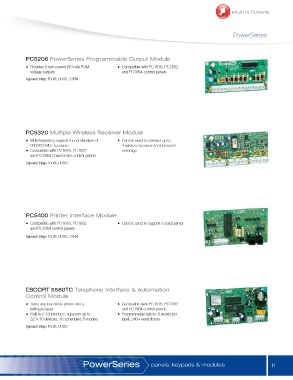

Page 15 - Catalog DSC 2014

return to Contents

PowerSeries

PC5208 PowerSeries Programmable Output Module

• Provides 8 low current (50 mA) PGM • Compatible with PC1616, PC1832
voltage outputs and PC1864 control panels

Approval Listings: FCC/IC, UL/ULC, CSFM

PC5320 Multiple Wireless Receiver Module

• Multi-frequency support for combination of • Can be used to connect up to
• 900/433 MHz receivers 4 wireless receivers for increased
Compatible with PC1616, PC1832 coverage

and PC1864 PowerSeries control panels

Approval Listings: FCC/IC, UL/ULC

PC5400 Printer Interface Module

• Compatible with PC1616, PC1832 • Can be used to support a serial printer
and PC1864 control panels

Approval Listings: FCC/IC, UL/ULC, CSFM

ESCORT 5580TC Telephone Interface & Automation

Control Module

• Turns any touchtone phone into a • Compatible with PC1616, PC1832
• talking keypad • and PC1864 control panels
Built-in X-10 interface: supports up to Programmable labels: 6 words per

32 X-10 devices, 16 schedules, 8 modes label, 240+ word library

Approval Listings: FCC/IC, UL/ULC

PowerSeries panels, keypads & modules 11
