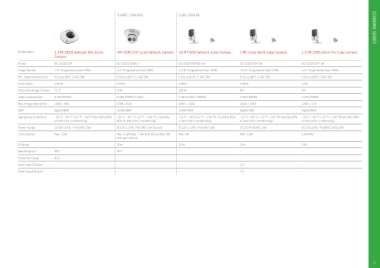

Page 31 - Hikvision - Ghid rapid- 2017-Q4

TURRET CAMERAS CUBE CAMERA ECONOMIC SERIES

Model Name 1.3 MP CMOS Network Mini Dome 4MP WDR EXIR Turret Network Camera 4.0 MP WDR Network Cube Camera 2 MP cmos Alarm Cube Camera 1.0 MP CMOS Alarm Pro Cube Camera
Camera
Model DS-2CD2342WD-I DS-2CD2442FWD-IW DS-2CD2420F-IW DS-2CD2410F-IW
Image Sensor DS-2CD2510F 1/3" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/4" Progressive Scan CMOS
Min. Illumination(Color) 1/3" Progressive Scan CMOS 0.01Lux @ (F1.2, AGC ON) 0.01Lux @ (F1.2, AGC ON) 0.01Lux @(F1.2,AGC ON) 0.01Lux @(F1.2,AGC ON)
Lens option 0.01Lux @(F1.2,AGC ON) 2.8mm 2.8mm 2.8mm 4mm
Horizontal Angle of View 2.8mm 106° 105.8° 85° 55°
Video Compression 73.1° H.264/MJPEG/H.264+ H.264/H.264+/MJPEG H.264/MJPEG H.264/MJPEG
Max. Image Resolution H.264/MJPEG 2688×1520 2688 × 1520 1920 x 1080 1280 × 720
WDR 1280 × 960 120DB WDR 120DB WDR Digital WDR Digital WDR
Operations Conditions Digital WDR -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity -10 °C – 40°C (14 °F – 104 °F), Humidity 95% -30 °C – 60 °C (-22 °F – 140 °F)Humidity 95% -30 °C – 60 °C (-22 °F – 140 °F)Humidity 95%
-30 °C – 60 °C (-22 °F – 140 °F)Humidity 95% 95% or less (non-condensing) or less (non-condensing) or less (non-condensing) or less (non-condensing)
Power Supply or less (non-condensing) DC12V ± 25%, PoE (802.3af Class3) DC12V ± 10%, PoE (802.3af) DC12V/PoE(802.3af) DC12V±10%/ PoE(802.3af)±10%
Consumption 12 VDC±10% / PoE (802.3af) Max. 5.5W (Max. 7.5W with ICR on)Max. 9W Max. 5W MAX. 4.5W 5.5W MAX
Max. 3.5W with pan and tilt
IR Range 30m 10 m 10m 10m
Weatherproof - IP67 - - -
Protection level IP67 - - - -
Audio Input/Output IK10 - - 1/1 -
Alarm Input/Output - - - 1/1 -
-
