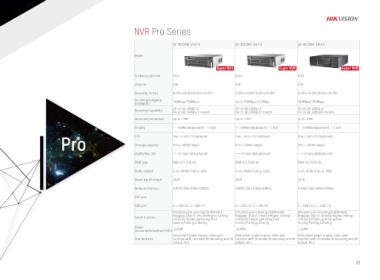

NVR Pro Series DS-96128NI-I24(/H) DS-96256NI-I16(/H)
DS-96256NI-I24(/H)
Model
Super NVR Super NVR Super NVR
hardware platform Intel Intel Intel
channel 256 128 256
Decoding format H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264
Incoming/outgoing
bandwidth 768Mbps/768Mbps Up to 768Mbps/512Mbps 768Mbps/768Mbps
Decoding Capability 20-ch @ 1080p or 20-ch @ 1080p or 20-ch @ 1080p or
64-ch @ 1080p(/H model) 64-ch @ 1080p(/H model) 64-ch @ 1080p(/H model)
Recording Resolution Up to 12MP Up to 12MP Up to 12MP
Display 2 × HDMI(independent), 1 x VGA 2 × HDMI(independent), 1 x VGA 2 × HDMI(independent), 1 x VGA
Pro LCD One 7 inch LCD (optional) One 7 inch LCD (optional) One 7 inch LCD (optional)
Storage capacity 8TB x 24(Hot Swap) 8TB x 24(Hot Swap) 8TB × 16(Hot Swap)
eSATA/Mini SAS ——/2 mini SAS(optional) ——/2 mini SAS(optional) ——/2 mini SAS(optional)
RAID type RAID 0/1/5/6/10 RAID 0/1/5/6/10 RAID 0/1/5/6/10
Audio output 1-ch. RCA(2.0 Vp-p, 1KΩ) 1-ch. RCA(2.0 Vp-p, 1KΩ) 1-ch. RCA(2.0 Vp-p, 1KΩ)
Alarm input/output 16/8 16/8 16/8
Network interface 4 RJ45 10m/100m/1000m 4 RJ45 10m/100m/1000m 4 RJ45 10m/100m/1000m
PoE port —— —— ——
USB port 1 × USB 2.0, 2 × USB 3.0 1 × USB 2.0, 2 × USB 3.0 2 × USB 2.0, 2 × USB 3.0
smart function Intrusion,Line crossing,Unattended Intrusion,Line crossing,Unattended Intrusion,Line crossing,Unattended
Baggage,Object removal,Region exiting/ Baggage,Object removal,Region exiting/ Baggage,Object removal,Region exiting/
entrance,People gathering,Fast entrance,People gathering,Fast entrance,People gathering,Fast
moving,Parking,Loitering moving,Parking,Loitering moving,Parking,Loitering
Power ≤140W ≤140W ≤140W
consumption(without HDD)
Redundant power supply, video wall Redundant power supply, video wall Redundant power supply, video wall
Star features function with /H model,4K decoding and 4K function with /H model,4K decoding and 4K function with /H model,4K decoding and 4K
output, N+1 output, N+1 output, N+1
33
