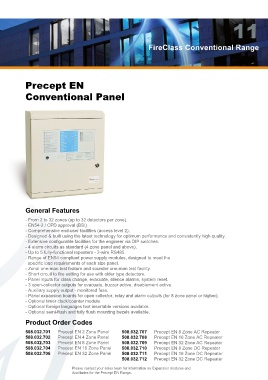

Page 11 - Catalog FireClass 2014

11

FireClass Conventional Range

Precept EN
Conventional Panel

General Features

- From 2 to 32 zones (up to 32 detectors per zone).
- EN54-2 / CPD approval (BSI).
- Comprehensive end-user facilities (access level 2).
- Designed & built using the latest technology for optimum performance and consistently high quality.
- Extensive configurable facilities for the engineer via DIP switches.
- 4 alarm circuits as standard (4 zone panel and above).
- Up to 5 fully-functional repeaters - 2-wire RS485.
- Range of EN54 compliant power supply modules, designed to meet the

specific load requirements of each size panel.
- Zonal one-man test feature and sounder one-man test facility.
- Short circuit to fire setting for use with older type detectors.
- Panel inputs for class change, evacuate, silence alarms, system reset.
- 3 open-collector outputs for evacuate, buzzer active, disablement active.
- Auxiliary supply output - monitored fuse.
- Panel expansion boards for open collector, relay and alarm outputs (for 8 zone panel or higher).
- Optional timer clock/counter module.
- Optional foreign languages text insertable versions available.
- Optional semi-flush and fully flush mounting bezels available.

Product Order Codes

508.032.701 Precept EN 2 Zone Panel 508.032.707 Precept EN 8 Zone AC Repeater
508.032.702 Precept EN 4 Zone Panel 508.032.708 Precept EN 16 Zone AC Repeater
508.032.703 Precept EN 8 Zone Panel 508.032.709 Precept EN 32 Zone AC Repeater
508.032.704 Precept EN 16 Zone Panel 508.032.710 Precept EN 8 Zone DC Repeater
508.032.706 Precept EN 32 Zone Panel 508.032.711 Precept EN 16 Zone DC Repeater
508.032.712 Precept EN 32 Zone DC Repeater

Please contact your sales team for information on Expansion modules and
Ancillaries for the Precept EN Range.
