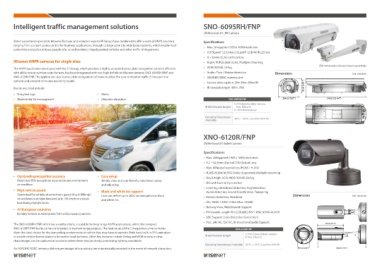

elligent traffic management solutions SNO-6095RH/FNP
2M Network IR LPR Camera
Video surveillance specialists Hanwha Techwin and analytics experts FF Group have combined to offer a suite of ANPR solutions Specifications
ranging from car park access control for business applications, through to large scale city wide based systems, which enable local
authorities and police to keep people safe, as well as detect illegally parked vehicles and other traffic infringements. • Max. 2megapixel (1920 x 1080) resolution
• 0.015Lux@F1.2 (Colour), 0Lux@F1.2 (B/W: IR LED on)
Wisenet ANPR cameras for single sites • 8 ~ 50mm (6.3x) varifocal lens
• H.264, MJPEG dual codec, Multiple streaming
The ANPR application developed with the FF Group, which provides a highly accurate licence plate recognition solution effective • WDR (120dB), Defog Dimensions STB-400 (needs to be purchased separately)
with all European number plate formats, has been integrated with two high definition Wisenet cameras: SNO-6095RH/FNP and • Audio / Face / Motion detection Unit : mm (inch)
XNO-6120R/FNP. The application uses license plate recognition software to allow the user to monitor traffic (3 lines per one • SD/SDHC/SDXC memory slot 150.105(05.91")
camera) and prevent crime and record its results. • License plate capture: 20m (Max. 80km/h) 570.05(7202.44")
• IR viewable length 100m, IP66
Events recorded include:
• Alerts SNO-6095RH/FNP 200.02(070.87")
• Entry/exit logs • Direction detection
• Black/white list management
IR LED Viewable Length 1) 2 0m (Licence plate capture,
Max. 80km/h)
2) 100m (Normal use)
Operating Temperature -20°C ~ +50°C / Less than 90% RH
/Humidity
XNO-6120R/FNP
2M Network IR Bullet Camera
• Outstanding recognition accuracy • Easy setup Specifications Dimensions Unit : mm (inch)
More than 95% recognition accuracy in any environment Simple, clear and user-friendly installation, setup • Max. 2Megapixel (1920 x 1080) resolution ØØ9911.0.0((33..5588""))
or condition. and adjusting. • 5.2 ~ 62.4mm (Optical 12X) Optical Lens
• Max. 60fps@all resolutions (H.265 / H.264)
• High vehicle speed • Black and white list support • H.265, H.264, MJPEG Codec Supported, Multiple streaming
• Day & Night (ICR), WDR (150dB), Defog
Guaranteed for vehicles at a maximum speed of up to 80kmph User can define up to 2000 number plates in black • DIS with built-in Gyro sensor
on two lanes or at night-time and up to 150 kmph on a single and white list. • Loitering, Directional detection, Fog Detection,
lane during daylight hours.
Audio detection, Sound Classification, Tampering
• All European countries • Motion Detection, Handover
• SD / SDHC / SDXC 2 Slot (Max. 512GB)
Reliably detects number plates from all European countries. • Hallway View, WiseStreamII Support
• IR Viewable Length 70m (229.66ft), IP67 / IP66, NEMA 4X, IK10
The SNO-6095RH/FNP, which has a varifocal lens, is suitable for long range ANPR applications, whilst the compact • LDC Support (Lens Distortion Correction) 220000..99 ((77..9911"")) )"19.7( 9.002
XNO-6120RF/FNP bullet camera is targeted at medium range projects. The feature set of the 2 megapixel cameras makes • PoE , 24V AC, 12V DC, Bi-directional audio Support
them the ideal choice for the demanding environments in which they may have to operate. Both have built-in IR illumination
to enable vehicle license plates to be read in total darkness. Other key features include Defog and WDR to ensure clear, IR LED Viewable Length XNO-6120R/FNP
sharp images can be captured in locations where there may be strong contrasting lighting conditions. 1) 20m (Licence plate capture)
2) Max. 50km/h
An SD/SDHC/SDXC memory slot ensures images of any activity are automatically recorded in the event of network disruption.
Operating Temperature / Humidity -20°C ~ +50°C / Less than 90% RH
3)63"16858..6.461(((11644...8556113"")) )"85.3
