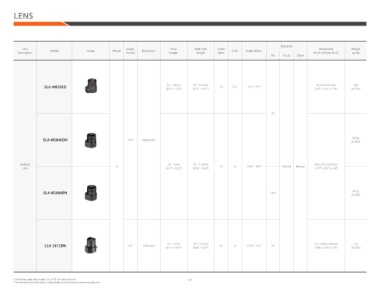

S Wisenet HD+ series
Lens Model Image Mount Image Resolution Focal Back Focal Zoom F. No Angle of View Operation Dimensions Weight
Description Format Length Length Ratio Iris Focus Zoom W x H x D (mm / inch) (g / lb)
SLA-M8550D 8.5 ~ 50mm 9.4 ~ 10.7mm 5.9 F1.6 42.3° ~ 7.5° 46 x 60 x 58.2mm 80g
(0.33" ~ 1.97") (0.37" ~ 0.42") (1.81" x 2.36" x 2.29") (0.17 lb)
SLA-M2890DN
DC
Varifocal
Lens 1/2.8" 3Megapixel 84.0g
(0.19 lb)
SLA-M2890PN
CS 2.8 ~ 9mm 7.5 ~ 15.9mm 3.2 1.2 134.2° ~ 42.7° Manual Manual 45.0 x 51.5 x 54.3mm
(0.11" ~ 0.35") (0.30" ~ 0.63") (1.77" x 2.03" x 2.14")
P-Iris 82.1g
(0.18 lb)
SLA-2812DN 1/3" 520K pixel 2.8 ~ 12mm 20.2 ~ 8.1mm 4.2 1.3 133.0° ~ 29.7° DC 37.5 x 48.0 x 56.0mm 71g
(0.11" ~ 0.47") (0.80" ~ 0.32") (1.48" x 1.89" x 2.20") (0.16 lb)
© 2018 Hanwha Techwin Co., LTD. All rights reserved. 39
* The lastest product information / sepecification can be found at hanwha-security.com
